TES II PRO
Outdoor Fixed LED Display
Highly Integrated Design
Installation Method
Front / Rear Maintenance
Universal Cabinet
Fully Enclosed Module
Thin & Light
Highly Integrated Design
Highly integrated design, module and power cabinet support quick disassembly.
Installation Method

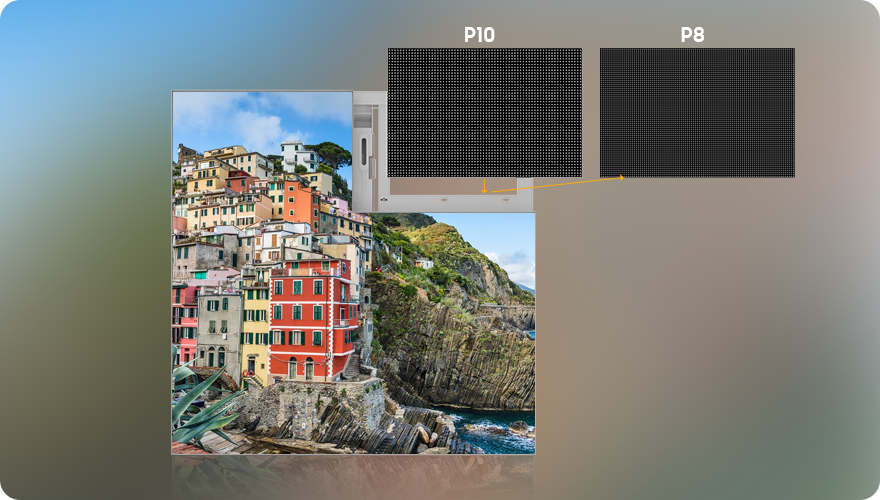

The customized curved shape screen is achieved easily by the module with 45 degree hypotenuse design.
Front/Rear Maintenance
Maintenance compatibility front and rear.
Universal Cabinet
General splicing of cabinetes with different sizes.
Fully Enclosed Module

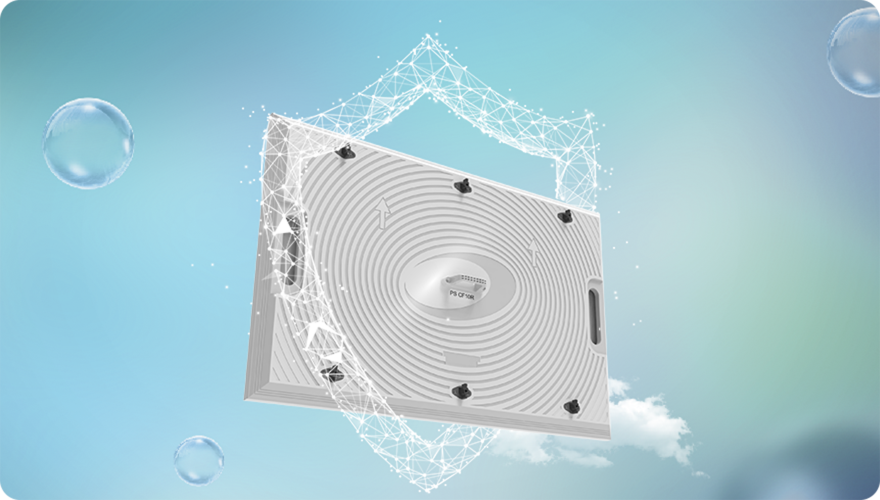

High protection design of fully enclosed module.
Thin & Light

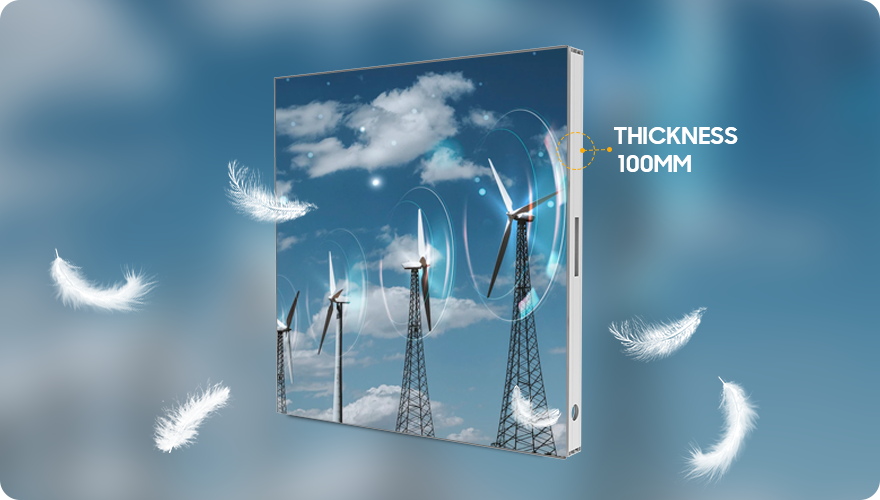

Thin and light design, with a thickness of only 100mm and a weight of 28Kg/m².
Applications

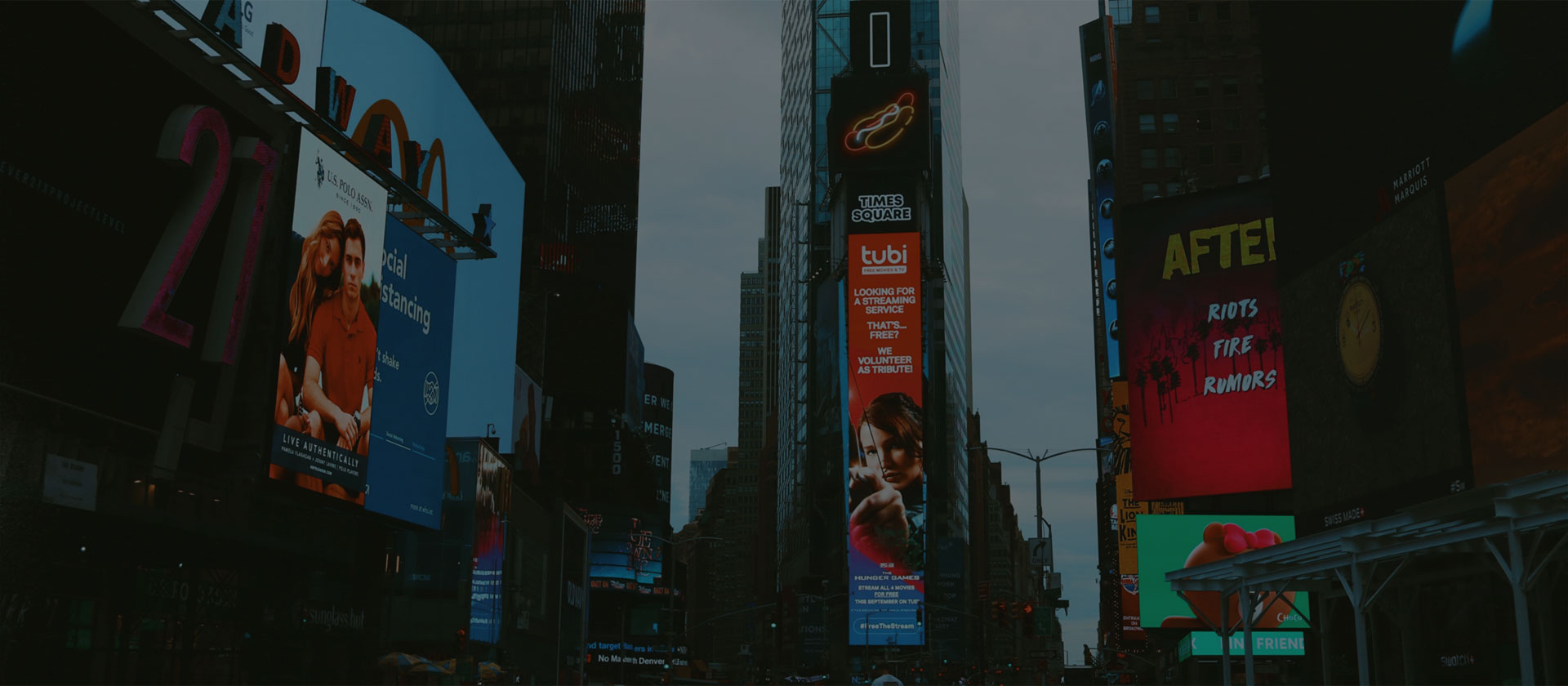

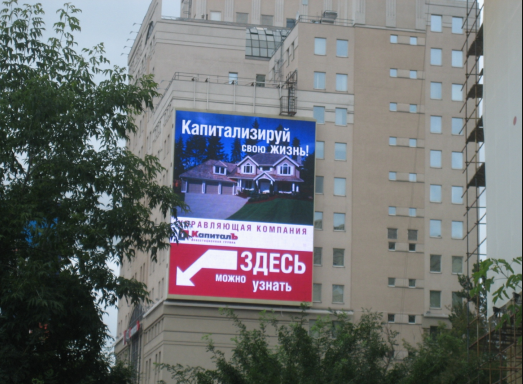

Outdoor LED Billboard

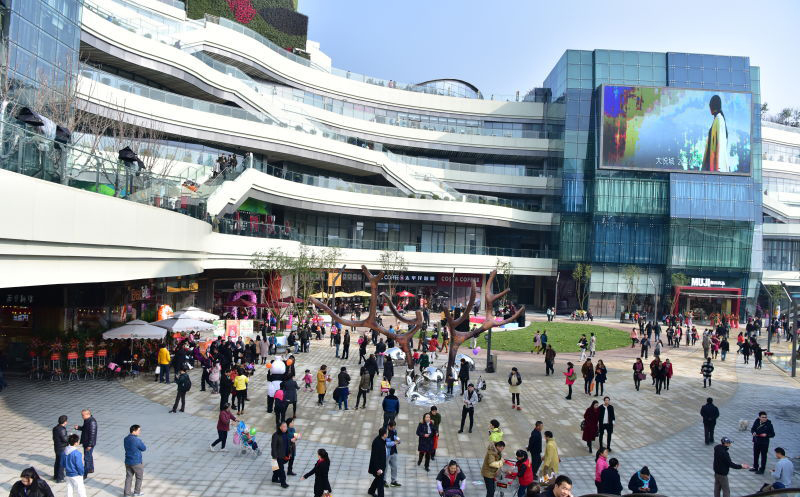

Shopping Mall
Specifications
Model Name TESII PRO 5 TESII PRO6.6 TESII PRO8 TESII PRO10 TESII PRO 10.66 TESII PRO 16
Basic
Parameter
Pixel Pitch 5mm 6.6mm 8mm 10mm 10.66mm 16mm
Pixel Configuration SMD 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD 3-in-1 1R1G1B 1R1G1B
Pixel Density (㎡) 40,000 pixels/m² 22,500 pixels/m² 15,625 pixels/m² 10,000 pixels/m² 8,800 pixels/m² 3,096 pixels/m²
LED Package type SMD1921 SMD2727 SMD2727 SMD2727 DIP346 DIP346
LED Lifetime Hr
(24Hr, Luminance 50% down)
100,000 Hrs 100,000 Hrs 100,000 Hrs 100,000 Hrs 100,000 Hrs 100,000 Hrs
Physical
Parameter
Physical Resolution of Module (W × H) 96 x 64 72 × 48 60 × 40 48 × 32 45 × 30 30 × 20
Physical Resolution of Cabinet (W × H) 192 x 192 144 x 144 120 x 120 96 x 96 90 x 90 60 x 60
LED Module Dimensions (mm) 480 × 320 480 × 320 480 × 320 480 × 320 480 × 320 480 × 320
No. of Modules Per Cabinet (W × H) 2 x 3 2 x 3 2 x 3 2 x 3 2 x 3 2 x 3
Cabinet Dimensions (W × H × D) (mm) 960 x 960 x 100 960 x 960 x 100 960 x 960 x 100 960 x 960 x 100 960 x 960 x 100 960 x 960 x 100
Weight Per Cabinet (kg/Cabinet) 26±5%/36±5% 26±5%/36±5% 26±5%/36±5% 26±5%/36±5% 26±5%/36±5% 26±5%/36±5%
Cabinet Material Aluminum/Steel Aluminum/Steel Aluminum/Steel Aluminum/Steel Aluminum/Steel Aluminum/Steel
Optical Parameter Brightness (cd/m²) >6,000 >6,000 >6,000 >6,000 10,000 10,000
Contrast Ratio 4,000 : 1 4,000 : 1 4,000 : 1 4,000 : 1 3,000 : 1 3,000 : 1
Front Mask for C/R Mask Mask Mask Mask Mask Mask
Viewing Angle(H/V) 140° / 120° 140° / 120° 140° / 120° 140° / 120° 120° / 60° 120° / 60°
Refresh Rate (Hz) 1920 - 3,840 Hz 1920 - 3,840 Hz 1920 - 3,840 Hz 1920 - 3,840 Hz 1920 - 3,840 Hz 1920 - 3,840 Hz
Bit-depth(bit) 14~16 bit 14~16 bit 14~16 bit 14~16 bit 14~16 bit 14~16 bit
Scan method 1/8 1/6 1/4 1/2 1/4 1/1
Colours 281 trillion 281 trillion 281 trillion 281 trillion 281 trillion 281 trillion
Color Temperature - Default 6500K±500K 6500K±500K 6500K±500K 6500K±500K 6500K±500K 6500K±500K
Electrical Parameter Max Power Consumption (w/㎡) 800 780 780 780 350 350
Typical Power Consumption (w/㎡) 250 250 250 250 105 105
Power AC100-240V, 50/60Hz AC100-240V, 50/60Hz AC100-240V, 50/60Hz AC100-240V, 50/60Hz AC100-240V, 50/60Hz AC100-240V, 50/60Hz
Operation Conditions Operating Temp/Humidity -20 - 50℃ / 10% - 80% -20 - 50℃ / 10% - 80% -20 - 50℃ / 10% - 80% -20 - 50℃ / 10% - 80% -20 - 50℃ / 10% - 80% -20 - 50℃ / 10% - 80%
Storage Temp/Humidity -30 - 60℃ / 10% - 90% -30 - 60℃ / 10% - 90% -30 - 60℃ / 10% - 90% -30 - 60℃ / 10% - 90% -30 - 60℃ / 10% - 90% -30 - 60℃ / 10% - 90%
Cooling Natural Cooling Natural Cooling Natural Cooling Natural Cooling Natural Cooling Natural Cooling
IP Rating IP 65 IP 65 IP 65 IP 65 IP 65 IP 65
Certification Safety 62368-1, 60950-1 62368-1, 60950-1 62368-1, 60950-1 62368-1, 60950-1 62368-1, 60950-1 62368-1, 60950-1
EMC Class A(optional) Class A(optional) Class A(optional) Class A(optional) Class A(optional) Class A(optional)
Service Servicing Front / Rear Front / Rear Front / Rear Front / Rear Front / Rear Front / Rear
Curve Installation Curve Support (-:concave +: convex) (˚) / / / / / /
