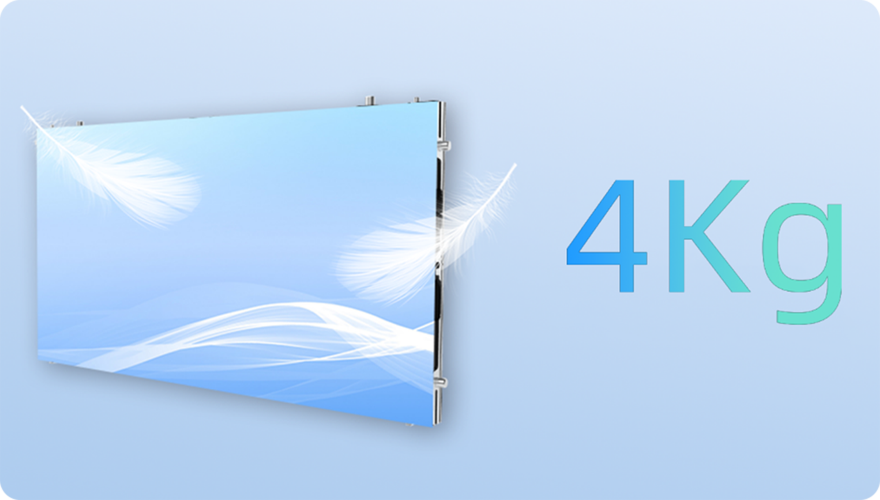

Thin & Light

39.75mm thick panel with a weight of 4kg, less expensive to transport and effortless to install.

Support HDR Function

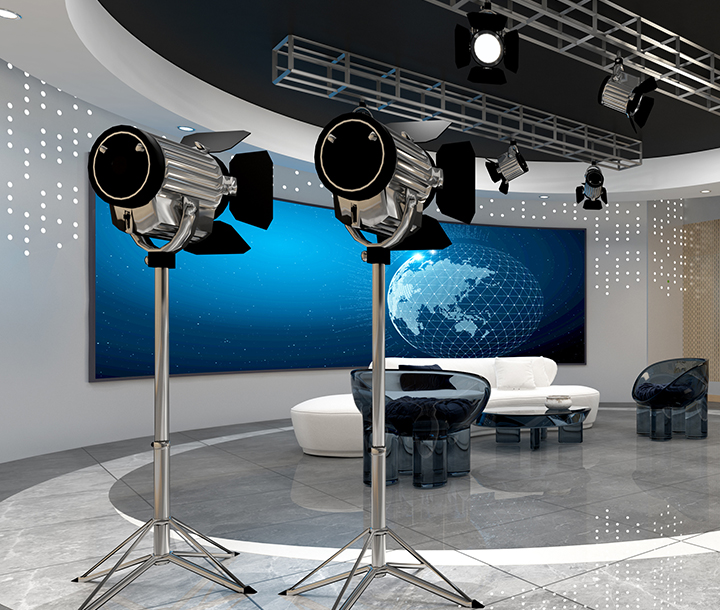

This curved LED screen panel supports HDR10 and HDR10+ video playback. It provides unparalleled picture dynamics, creating lifelike screen effects that are ideal for background filming.

High Definition Color

The HiPad II-W delivers exceptionally high contrast and resolution. This flexible LED video wall is perfect for events, large scale walls, stage or entertainment events.

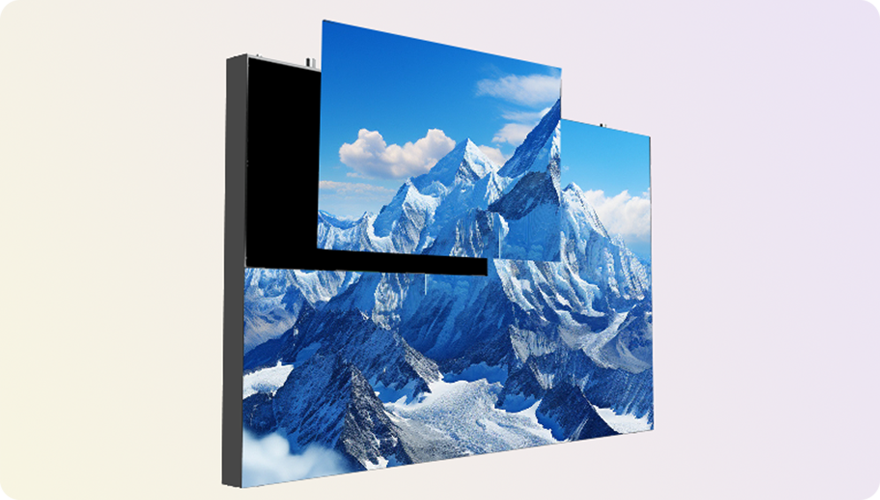

Front Install / Service

All components can be maintained from the front of the cabinet, and the cabinet supports front wall mounting.

Cold Screen Technology

The special power supply method makes the screen temperature of the HiPad II-COB-W series lower than conventional products.

High Reliability

The HiPad II-COB-W series has the characteristics of ultra-high protection performance, stability and reliability, and strong environmental adaptability.

Specifications

Model Name	HIPADⅡ-COB-W 0.9	HIPADⅡ-COB-W 1.2	HIPADⅡ-COB-W 1.5	HIPADⅡ-COB-W 1.8
Pixel Pitch	0.9375mm	1.25mm	1.5625mm	1.875mm
LED Module Dimensions (mm)	150 × 168.75	150 × 168.75	150 × 168.75	150 × 168.75
Cabinet Dimensions (W × H × D) (mm)	600× 337.5 × 39.75	600× 337.5 × 39.75	600× 337.5 × 39.75	600× 337.5 × 39.75
Brightness (cd/m²)	≤600	≤600	≤600	≤600
Refresh Rate (Hz)	3,840 Hz	3,840 Hz	3,840 Hz	3,840 Hz
IP Rating	Front IP54 / Rear IP50	Front IP54 / Rear IP50	Front IP54 / Rear IP50	Front IP54 / Rear IP50

SEE ALL SPECS
