OS
Outdoor Fixed LED Display
High Definition color
Die-casting Aluminum cabinet
Durable in Outdoor
IP65 Protection
Universal Cabinet
Quick Installation
High Definition Color
Ultimate experience with high contrast & resolution.
Die-casting Aluminum Cabinet
The cabinet has good electrical and thermal conductivity and is easy to dissipate heat.
Durable in Outdoor
The product is stable and reliable, and is suitable for most outdoor environments.
IP65 Protection
Meeting IP65 front and rear standards the OS series is resistant to the dust, water and weather proof.

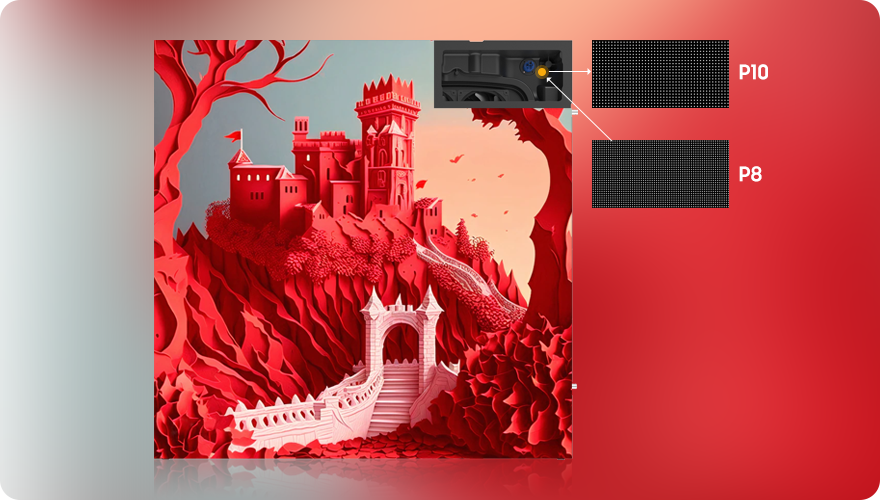

Universal Cabinet
One module is able to be used with different pixel pitch.

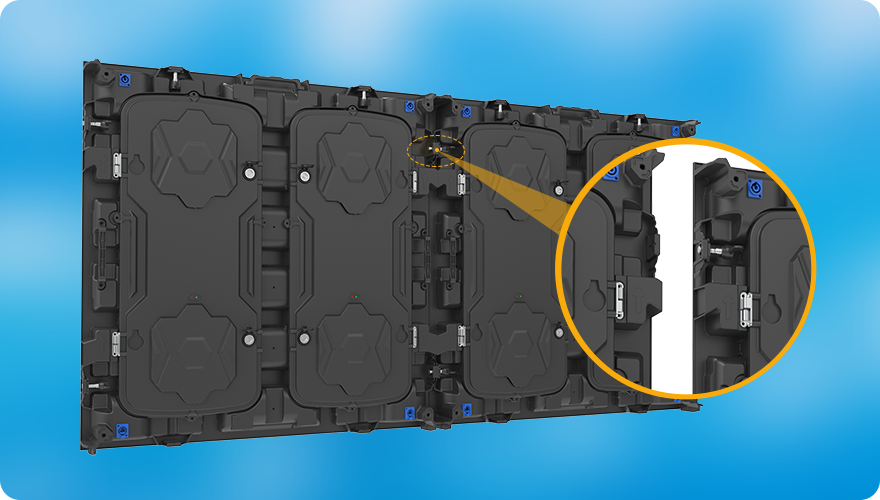

Quick Installation
Modular design of cabinet, module and power supply cabinet ensures 5S quick installation.
Applications

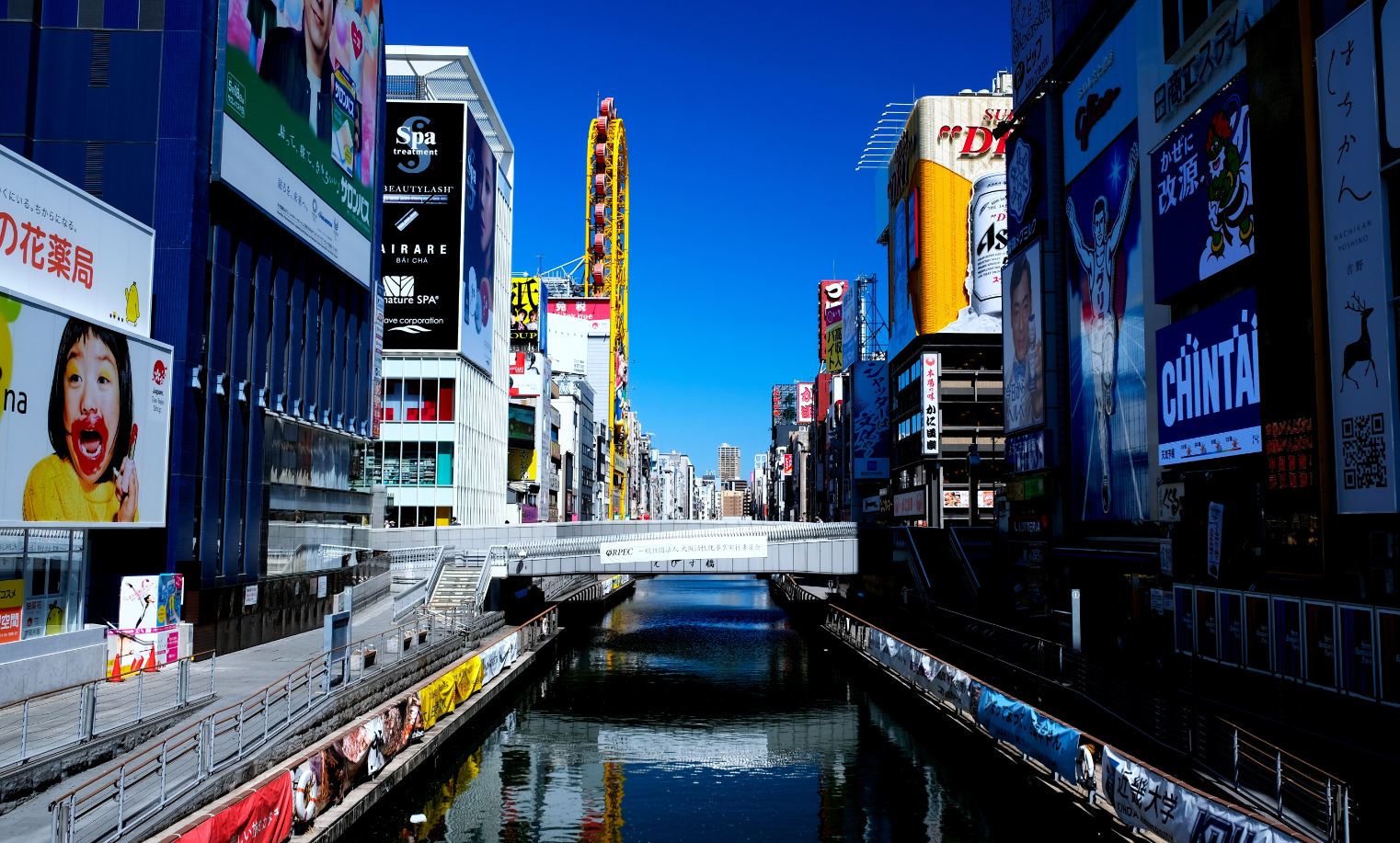

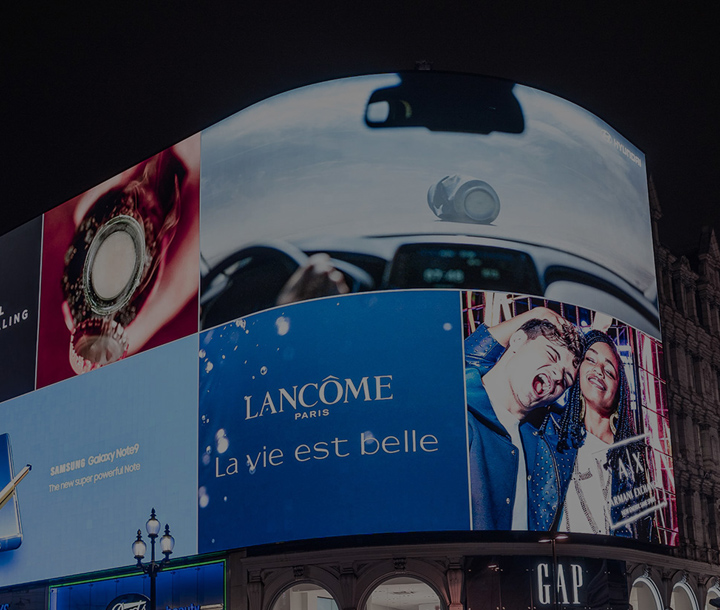

Outdoor LED Billboard
Digital Advertising
Specifications
Model Name 0S 2.5 OS 3 OS 4 OS 5 OS 6.6 OS 8 OS 10
Basic
parameter
Pixel Pitch 2.5mm 3.076mm 4mm 5mm 6.67mm 8mm 10mm
Pixel Configuration SMD 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD 3-in-1
Pixel Density (㎡) 160,000pixels/m² 105,625 pixels/m² 62,500 pixels/m² 40,000 pixels/m² 22,500 pixels/m² 15,625 pixels/m² 10,000 pixels/m²
LED Package type SMD1415 SMD1415 SMD1921 SMD1921/2727 SMD2727 SMD2727/3535 SMD2727/3535
LED Lifetime Hr
(24Hr, Luminance 50% down)
100,000 Hrs 100,000 Hrs 100,000 Hrs 100,000 Hrs 100,000 Hrs 100,000 Hrs 100,000 Hrs
Physical
Parameter
Physical Resolution of Module (W × H) 128 × 64 104 × 52 80 × 40 64 × 32 48 × 24 40 × 20 40 × 20
Physical Resolution of Cabinet (W × H) 256 x 256 208 x 208 240 x 240 192 x 192 144 x 144 120 x 120 120 x 120
LED Module Dimensions (mm) 320 × 160 320 × 160 320 × 160 320 × 160 320 × 160 320 × 160 320 × 160
No. of Modules Per Cabinet (W × H) 2 x 4 2 x 4 3 x 6 3 x 6 3 x 6 3 x 6 3 x 6
Cabinet Dimensions (W × H × D) (mm) 640 x 640 x 100 640 x 640 x 100 960 x 960 x 100 960 x 960 x 100 960 x 960 x 100 960 x 960 x 100 960 x 960 x 100
Weight Per Cabinet (kg/Cabinet) 13±5% 13±5% 30±5% 30±5% 30±5% 30±5% 30±5%
Cabinet Material Aluminum Diecasting Aluminum Diecasting Aluminum Diecasting Aluminum Diecasting Aluminum Diecasting Aluminum Diecasting Aluminum Diecasting
Optical Parameter Brightness (cd/m²) >5,000 >5,000 >5,500 >5,500 >5,500 >5,500 >5,500
Contrast Ratio 4,000 : 1 4,000 : 1 4,000 : 1 4,000 : 1 4,000 : 1 4,000 : 1 4,000 : 1
Front Mask for C/R Mask Mask Mask Mask Mask Mask Mask
Viewing Angle(H/V) 140° / 120 ° 140° / 120 ° 140° / 120 ° 140° / 120 ° 140° / 120 ° 140° / 120 ° 140° / 120 °
Refresh Rate (Hz) 1920 ~ 3,840 Hz 1920 ~ 3,840 Hz 1920 ~ 3,840 Hz 1920 ~ 3,840 Hz 1920 ~ 3,840 Hz 1920 ~ 3,840 Hz 1920 ~ 3,840 Hz
Bit-depth(bit) 13-14 bit 13-14 bit 13-14 bit 13-14 bit 13-14 bit 13-14 bit 13-14 bit
Scan method 1/16 1/13 1/10 1/8 1/6 1/4 1/2
Colours 4 trillion 4 trillion 4 trillion 4 trillion 4 trillion 4 trillion 4 trillion
Color Temperature - Default 6500K±500K 6500K±500K 6500K±500K 6500K±500K 6500K±500K 6500K±500K 6500K±500K
Electrical Parameter Max Power Consumption (w/m2) 860 860 800 800 780 780 780
Typical Power Consumption (w/m2) 280 280 260 260 250 250 250
Power AC100-240V, 50/60Hz AC100-240V, 50/60Hz AC100-240V, 50/60Hz AC100-240V, 50/60Hz AC100-240V, 50/60Hz AC100-240V, 50/60Hz AC100-240V, 50/60Hz
Operation Conditions Operating Temp/Humidity -20 - 40℃ / 10% - 80% -20 - 40℃ / 10% - 80% -20 - 40℃ / 10% - 80% -20 - 40℃ / 10% - 80% -20 - 40℃ / 10% - 80% -20 - 40℃ / 10% - 80% -20 - 40℃ / 10% - 80%
Storage Temp/Humidity -30 - 60℃ / 10% - 90% -30 - 60℃ / 10% - 90% -30 - 60℃ / 10% - 90% -30 - 60℃ / 10% - 90% -30 - 60℃ / 10% - 90% -30 - 60℃ / 10% - 90% -30 - 60℃ / 10% - 90%
Cooling Self Self Self Self Self Self Self
IP Rating IP 65 IP 65 IP 65 IP 65 IP 65 IP 65 IP 65
Certification Safety / / / / / / /
EMC / / / / / / /
Service Servicing Rear Rear Rear Rear Rear Rear Rear
Curve Installation Curve Support (-:concave +: convex) (˚) / / / / / / /
