IS
Indoor Fixed LED Display
High Definition color
Die-casting Aluminum cabinet
Front Install / Service
Wide Viewing Angles
Universal Cabinet
Quick Installation

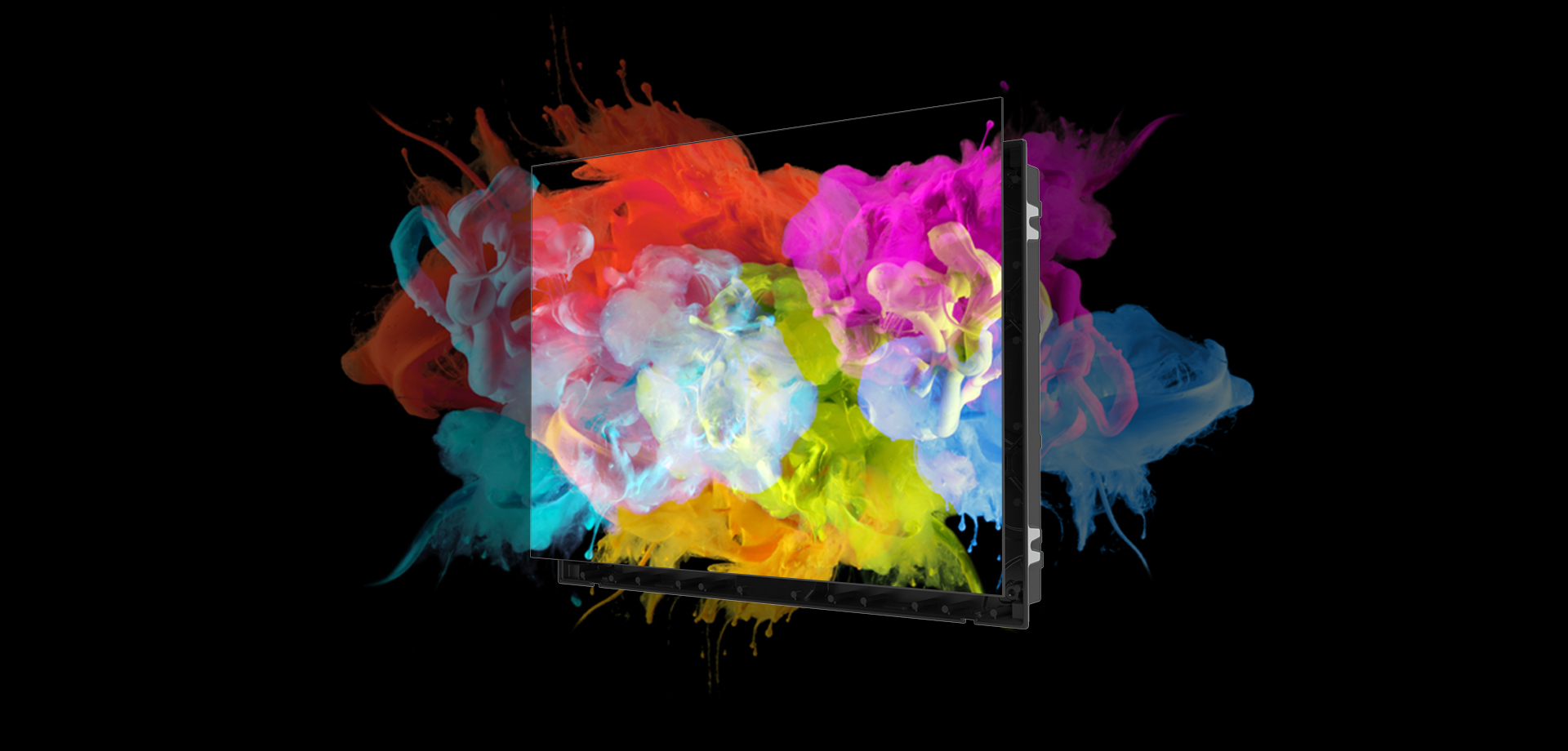

High Definition Color
Ultimate experience with high contrast & resolution.
Die-casting Aluminum Cabinet
The cabinet has good electrical and thermal conductivity and is easy to dissipate heat.
Front Install / Service
All modules, power supplies, internal electronics and cables are replaceable from the front.
Wide Viewing Angles
IS series provide wider viewing angles and pixel-perfect imagery which is a real advance over the traditional LCD and DLP video wall.

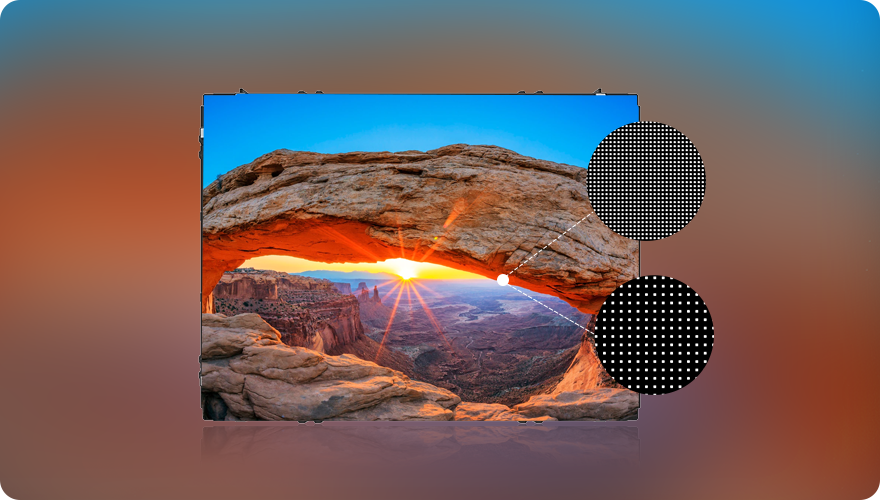

Universal Cabinet
One module is able to be used with different pixel pitch.
Quick Installation
Modular design of cabinet, module and power supply cabinet ensures 5S quick installation.

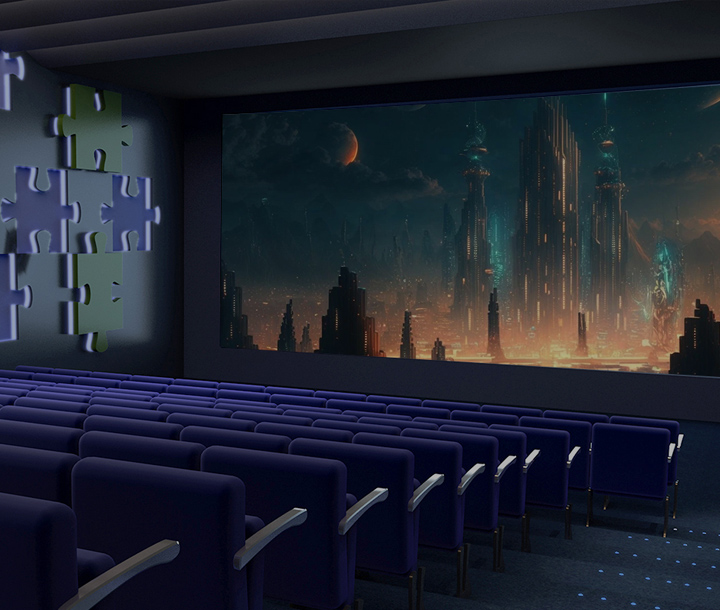

Applications

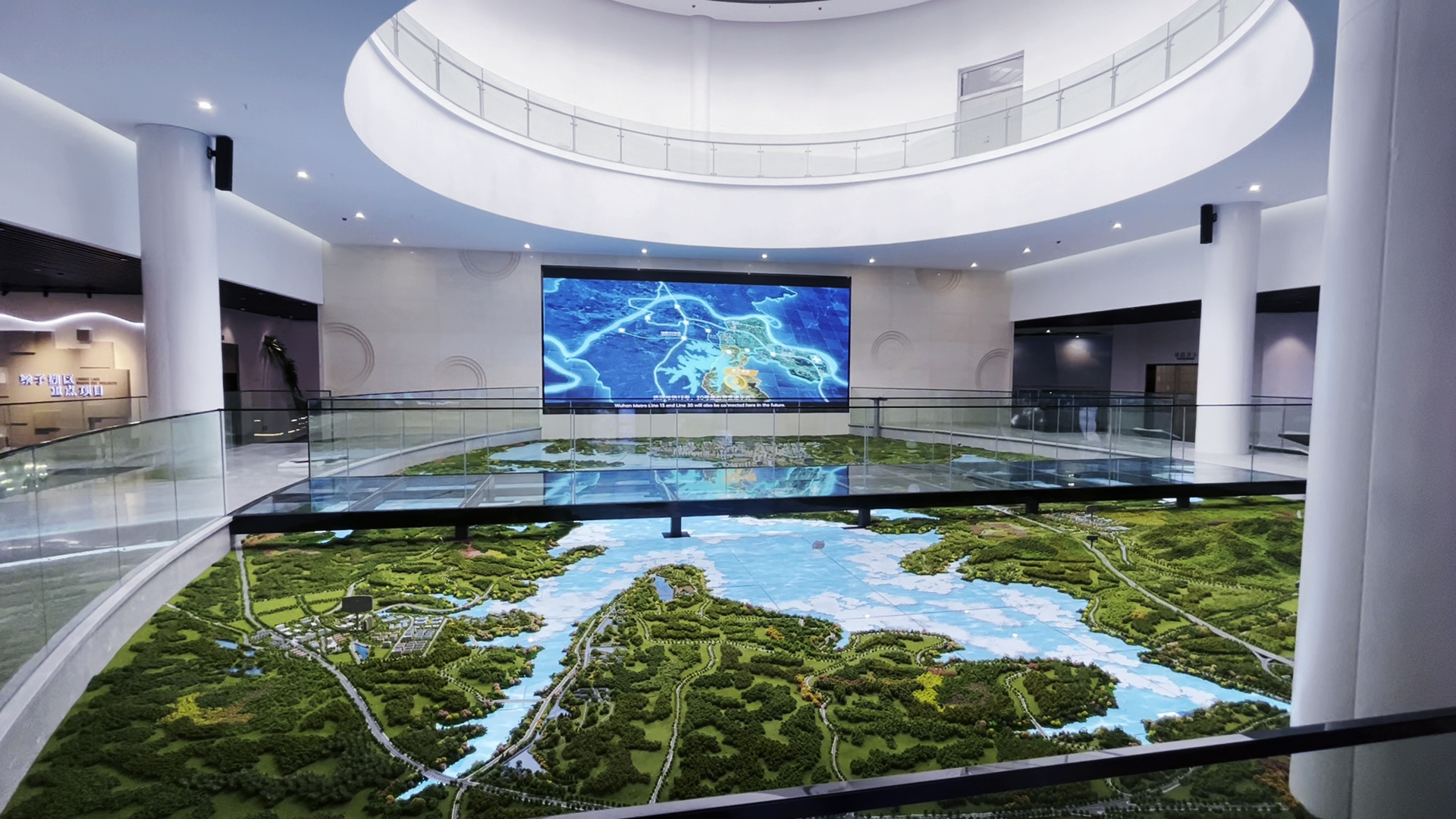

Exhibition Hall

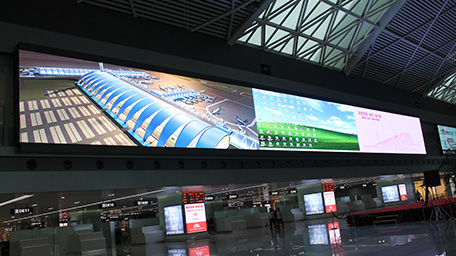

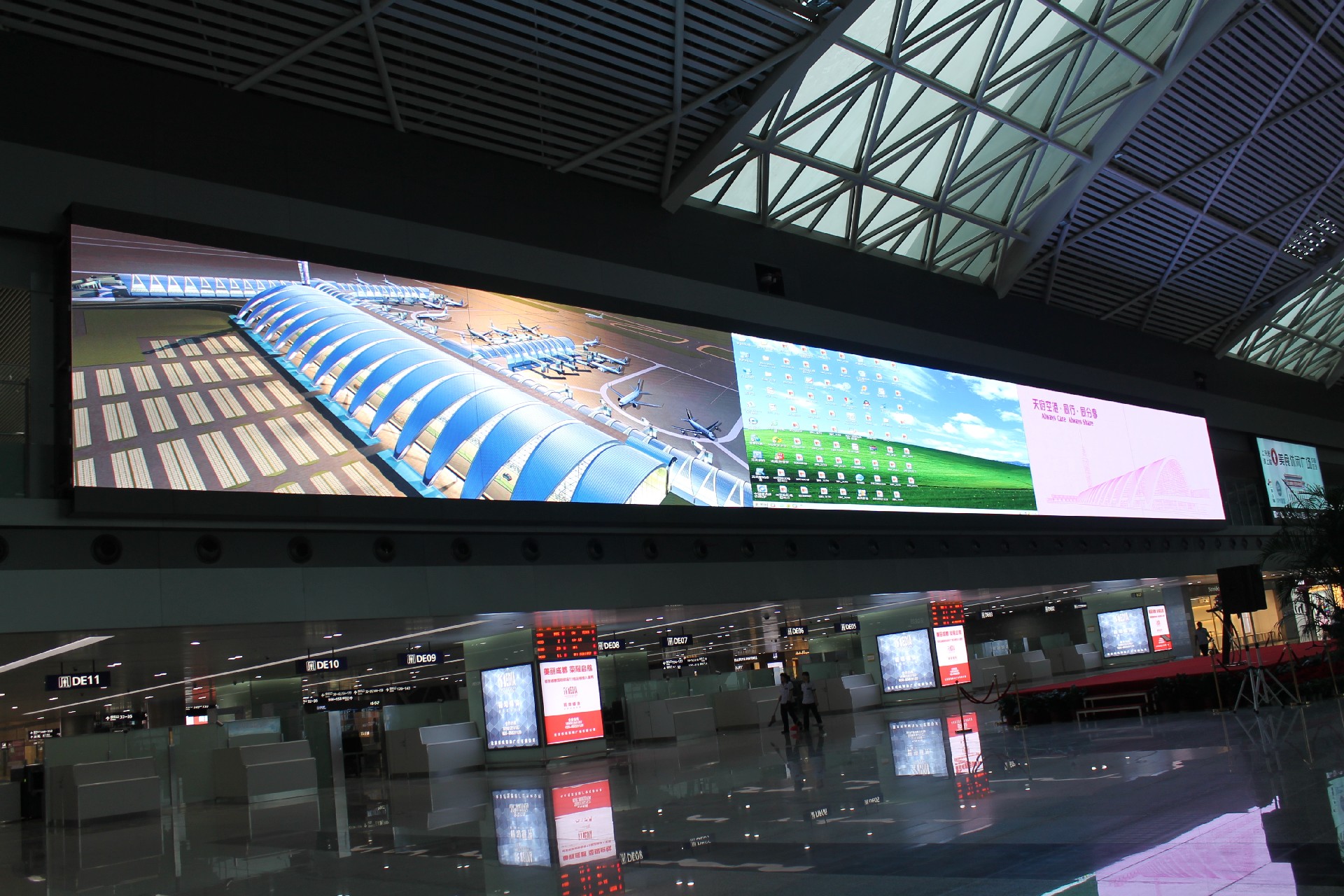

Airport
Specifications
Model Name IS 1.2 IS 1.5 IS 1.8 IS 2 IS 2.5 IS 3 IS 4
Basic
parameter
Pixel Pitch 1.25mm 1.538mm 1.86mm 2mm 2.5mm 3.076mm 4mm
Pixel Configuration SMD 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD 3-in-1
Pixel Density (㎡) 640,000 pixels/m² 422,500 pixels/m² 288,906 pixels/m² 250,000 pixels/m² 160,000 pixels/m² 105,625 pixels/m² 62,500 pixels/m²
LED Package type SMD1010 SMD1010/1212 SMD1515 SMD1515 SMD2020 SMD2020 SMD2020
LED Lifetime Hr
(24Hr, Luminance 50% down)
100,000 Hrs 100,000 Hrs 100,000 Hrs 100,000 Hrs 100,000 Hrs 100,000 Hrs 100,000 Hrs
Physical
parameter
Physical Resolution of Module (W × H) 256 × 128 208 × 104 172 × 86 160 × 80 128 × 64 96 × 48 80 × 40
Physical Resolution of Cabinet (W × H) 512 x 384 416 x 312 344 x 258 320 x 240 256 x 192 192 x 144 160 x 120
LED Module Dimensions (mm) 320 × 160 320 × 160 320 × 160 320 × 160 320 × 160 320 × 160 320 × 160
No. of Modules Per Cabinet (W × H) 2 x 3 2 x 3 2 x 3 2 x 3 2 x 3 2 x 3 2 x 3
Cabinet Dimensions (W × H × D) (mm) 640 x 480 x 50 640 x 480 x 50 640 x 480 x 50 640 x 480 x 50 640 x 480 x 50 640 x 480 x 50 640 x 480 x 50
Weight Per Cabinet (kg/Cabinet) 6.5±5% 6.5±5% 6.5±5% 6.5±5% 6.5±5% 6.5±5% 6.5±5%
Cabinet Material Aluminum Diecasting Aluminum Diecasting Aluminum Diecasting Aluminum Diecasting Aluminum Diecasting Aluminum Diecasting Aluminum Diecasting
Optical Parameter Brightness (cd/m²) >800 >800 >800 >800 >800 >800 >800
Contrast Ratio 4,000 : 1 4,000 : 1 4,000 : 1 4,000 : 1 4,000 : 1 4,000 : 1 4,000 : 1
Front Mask for C/R No/GOB No/GOB No/GOB No/GOB No/GOB Mask/GOB Mask/GOB
Viewing Angle(H/V) 160° / 160 ° 160° / 160 ° 160° / 160 ° 160° / 160 ° 160° / 160 ° 160° / 160 ° 160° / 160 °
Refresh Rate (Hz) 1920 ~ 3,840 Hz 1920 ~ 3,840 Hz 1920 ~ 3,840 Hz 1920 ~ 3,840 Hz 1920 ~ 3,840 Hz 1920 ~ 3,840 Hz 1920 ~ 3,840 Hz
Bit-depth(bit) 13-14 bit 13-14 bit 13-14 bit 13-14 bit 13-14 bit 13-14 bit 13-14 bit
Scan method 1/64 1/52 1/43 1/40 1/32 1/24 1/20
Colours 4 trillion 4 trillion 4 trillion 4 trillion 4 trillion 4 trillion 4 trillion
Color Temperature - Default 6500K±500K 6500K±500K 6500K±500K 6500K±500K 6500K±500K 6500K±500K 6500K±500K
Electrical Parameter Max Power Consumption (w/m2) 800 800 600 600 600 600 600
Typical Power Consumption (w/m2) 240 240 180 180 180 180 180
Power AC100-240V, 50/60Hz AC100-240V, 50/60Hz AC100-240V, 50/60Hz AC100-240V, 50/60Hz AC100-240V, 50/60Hz AC100-240V, 50/60Hz AC100-240V, 50/60Hz
Operation Conditions Operating Temp/Humidity -10 - 40℃ / 10% - 80% -10 - 40℃ / 10% - 80% -10 - 40℃ / 10% - 80% -10 - 40℃ / 10% - 80% -10 - 40℃ / 10% - 80% -10 - 40℃ / 10% - 80% -10 - 40℃ / 10% - 80%
Storage Temp/Humidity -20 - 60℃ / 10% - 90% -20 - 60℃ / 10% - 90% -20 - 60℃ / 10% - 90% -20 - 60℃ / 10% - 90% -20 - 60℃ / 10% - 90% -20 - 60℃ / 10% - 90% -20 - 60℃ / 10% - 90%
Cooling Self Self Self Self Self Self Self
IP Rating IP 30 IP 30 IP 30 IP 30 IP 30 IP 30 IP 30
Certification Safety / / / / / / /
EMC / / / / / / /
Service Servicing Front Front Front Front Front Front Front
Curve Installation Curve Support (-:concave +: convex) (˚) / / / / / / /
