OPad-E
OUTDOOR FINE PIXEL PITCH LED DISPLAY

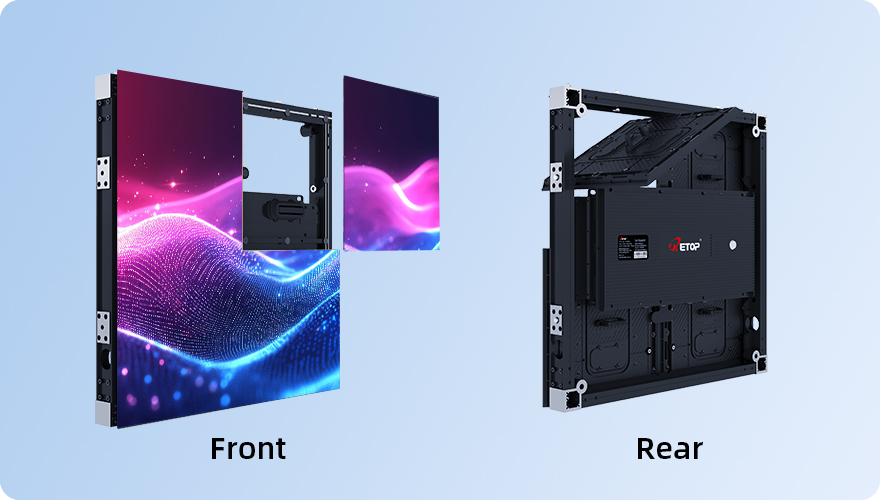

Supports front and rear maintenance for easy, time-saving servicing.
This fine pitch LED display provides a stunning 170° viewing angle for crisp, vivid images from any perspective.

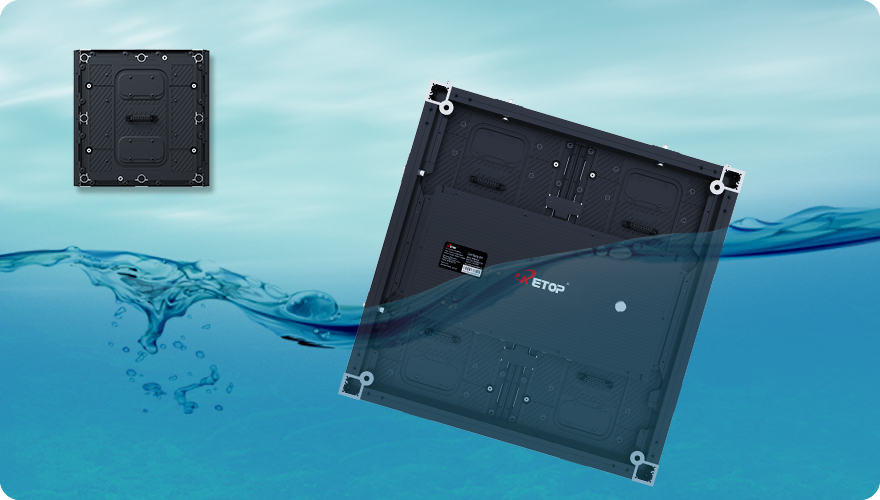

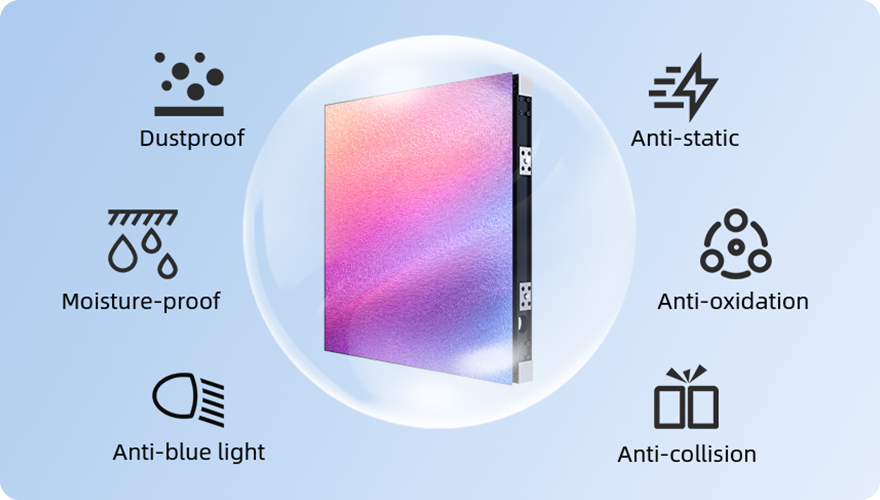

Modules are 100% sealed with dual-sided, IP65 protection. This durable, fine pixel LED display is meant to last in any environment.
This fine pixel LED display features intelligent modules that store calibration data for fast swaps without requiring recalibration.

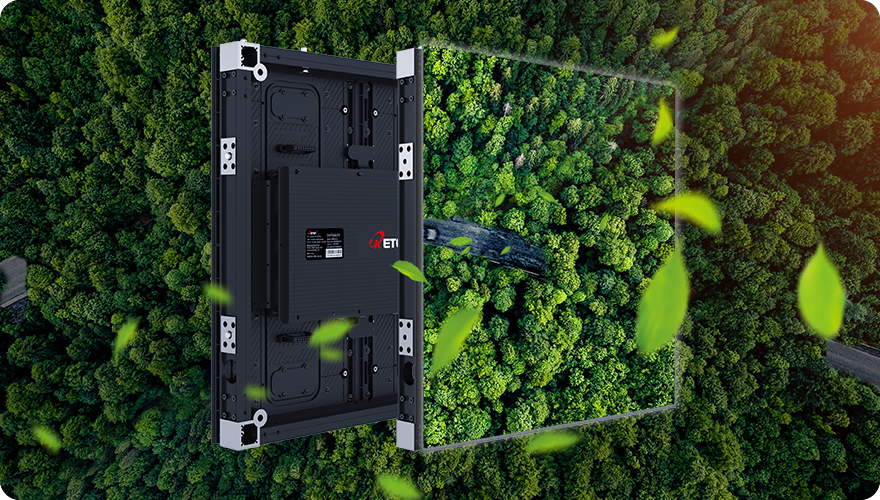

The common-cathode design offers high brightness (up to 3500 nits) while reducing energy consumption and is ideal for outdoor LED applications where sustainability is critical.
| Model Name | OPad-E 1.5 | OPad-E 1.9 | OPad-E 2.6 |
| Pixel Pitch | 1.5625 mm | 1.953 mm | 2.604 mm |
| LED Module Dimensions (mm) | 250 × 250 | 250 × 250 | 250 × 250 |
| Cabinet Dimensions (W × H × D) (mm) | 500 × 500 × 74.5 | 500 × 500 × 74.5 | 500 × 500 × 74.5 |
| Brightness (cd/m²) | 3,500 | 3,500 | 4,500 |
| Refresh Rate (Hz) | ≥ 3,840 | ≥ 3,840 | ≥ 3,840 |
| IP Rating | IP65 | IP65 | IP65 |
