LEX II
Outdoor Rental & Fixed LED Display
Ultra Light & Slim
Front & Rear Maintenance
IP65
Flexible Solutions
Quick Installation & Maintenance
EMC Class A
Ultra Light & Slim
65mm thick panel with a weight of 7.8/14kg, less expensive to transport and effortless to install.

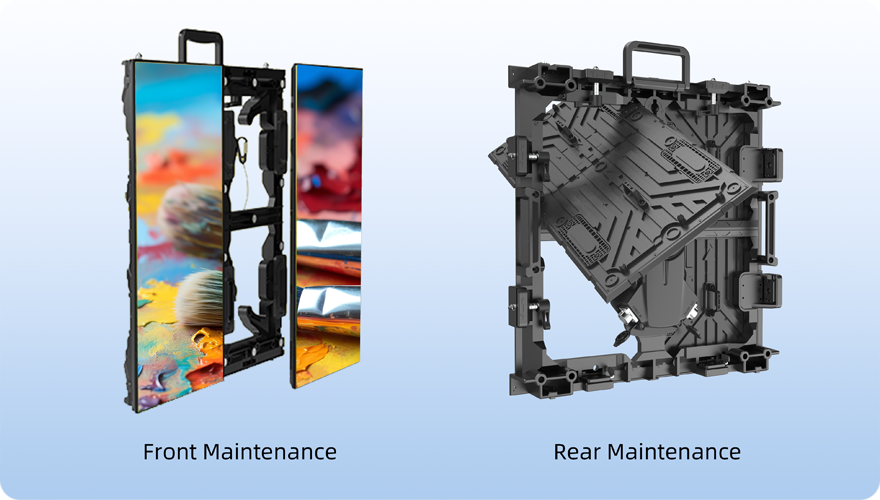

Front & Rear Maintenance
Optional front and rear maintenance to achieve easy and time-saving operation.
IP65 High Protection
Waterproof grade IP65 for both front and rear side.
Flexible Solutions
A variety of assembly methods to achieve different shape of installation.
Quick Installation & Maintenance
The LEX II series installation is simple and fast, with handles on the top of the cabinet for easy transportation and handles on both sides for easy installation.
EMC Class A
EMC standards and EMC class A available for high-end requirements.

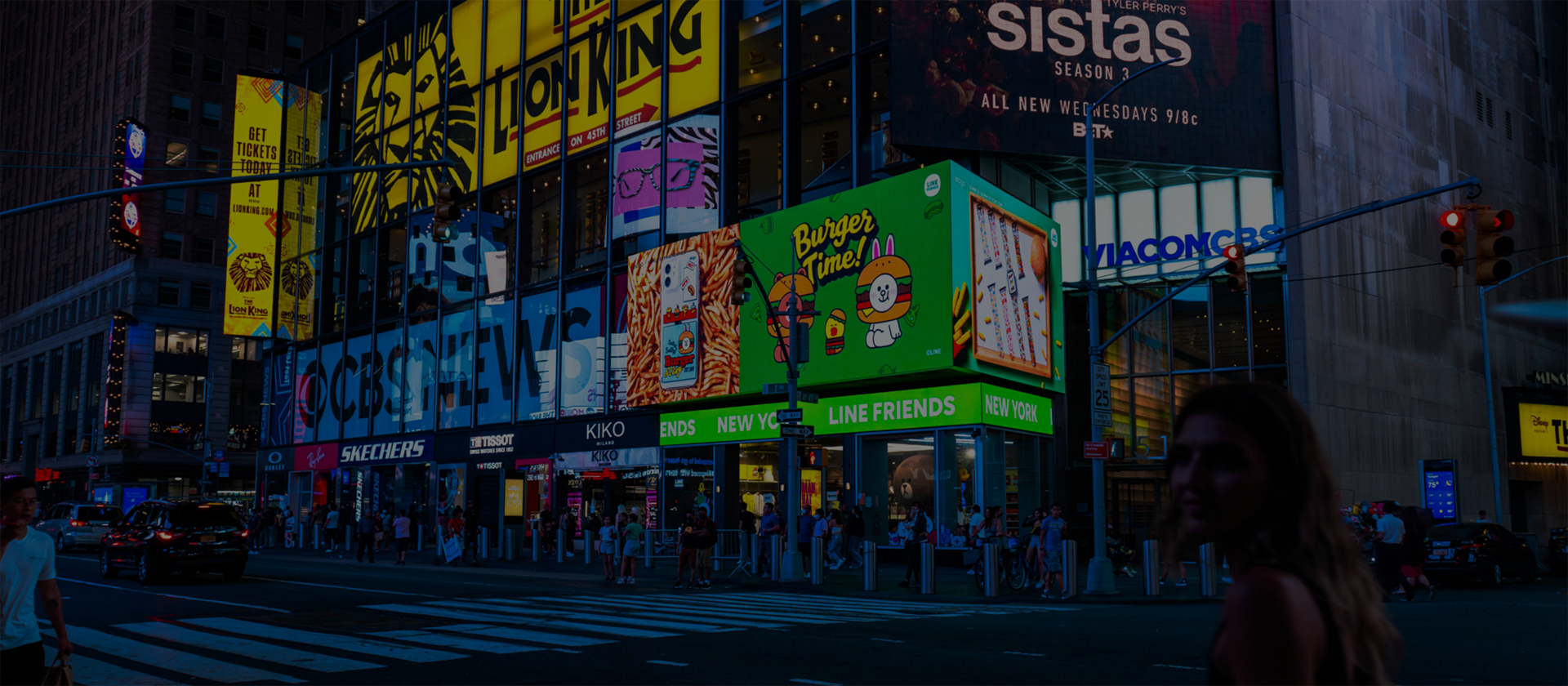

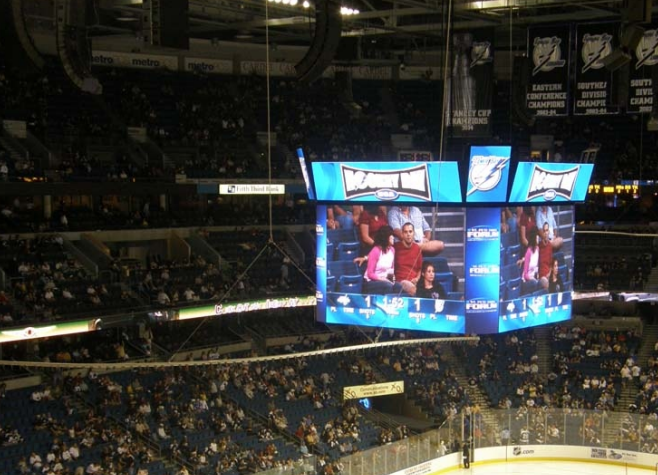

Applications

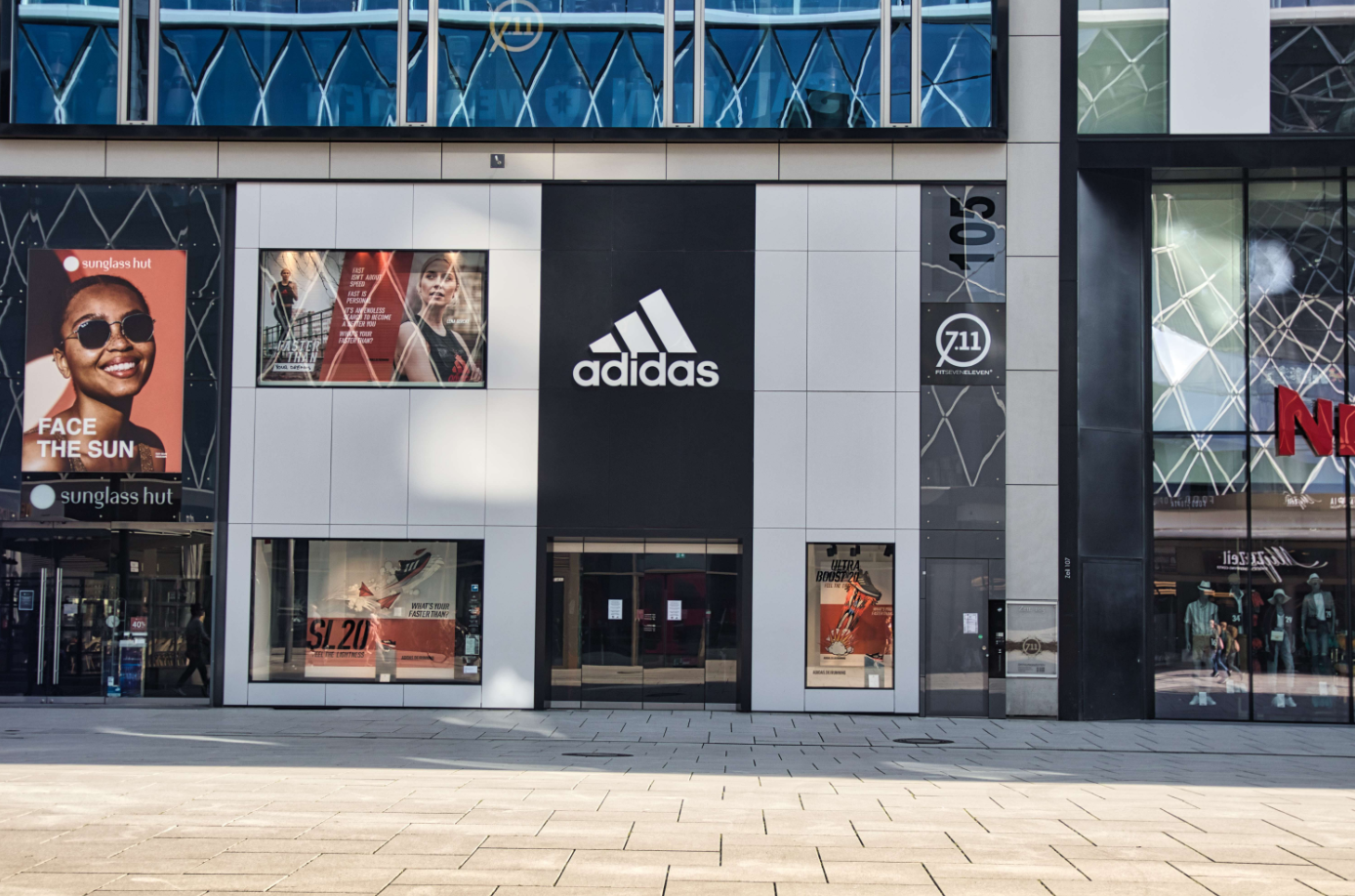

Chian Store

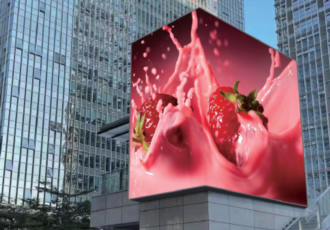

Naked 3D
Specifications
Model Name LEXII 2.6 LEXII 2.9 LEXII 3.9 LEXII 4.8
Basic
Parameter
Pixel Pitch 2.6mm 2.976mm 3.9mm 4.8mm
Pixel Configuration SMD 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD 3-in-1
Pixel Density (㎡) 147,456 pixels/m² 112,896 pixels/m² 65,536 pixels/m² 46,656 pixels/m²
LED Package type SMD1415 SMD1415 SMD1921 SMD1921
LED Lifetime Hr
(24Hr, Luminance 50% down)
100,000 Hrs 100,000 Hrs 100,000 Hrs 100,000 Hrs
Physical
Parameter
Physical Resolution of Module (W × H) 96 × 192 84 × 168 64 × 128 52 × 104
Physical Resolution of Cabinet (W × H) 192 x 192/192 x 384 168 x 168/168 x 336 128 x 128/128 x 256 104 x 104/104 x 208
LED Module Dimensions (mm) 250 × 250 250 × 500 250 × 500 250 × 500
No. of Modules Per Cabinet (W × H) 2 x 2 2 x 1/2 x 2 2 x 1/2 x 2 2 x 1/2 x 2
Cabinet Dimensions (W × H × D) (mm) 500× 500 × 65 500× 500 × 65 / 500 x 1000 x65 500× 500 × 65 / 500 x 1000 x65 500× 500 × 65 / 500 x 1000 x65
Weight Per Cabinet (kg/Cabinet) 7.8±5% 7.8±5% / 14±5% 7.8±5% / 14±5% 7.8±5% / 14±5%
Cabinet Material Aluminum Diecasting

Aluminum Diecasting

Aluminum Diecasting

Aluminum Diecasting

Optical Parameter Brightness (cd/m²) >5,000 >5,000 >5,500 >5,500
Contrast Ratio 4,000 : 1 4,000 : 1 4,000 : 1 4,000 : 1
Front Mask for C/R Mask Mask Mask Mask
Viewing Angle(H/V) 160° / 140 ° 160° / 140 ° 160° / 140 ° 160° / 140 °
Refresh Rate (Hz) 3,840 Hz 3,840 Hz 3,840 Hz 3,840 Hz
Bit-depth(bit) 14~16 bit 14~16 bit 14~16 bit 14~16 bit
Scan method 1/32 1/21 1/16 1/13
Colours 281 trillion 281 trillion 281 trillion 281 trillion
Color Temperature - Default 6500K±500K 6500K±500K 6500K±500K 6500K±500K
Electrical Parameter Max Power Consumption (w/㎡) 860 860 780 780
Typical Power Consumption (w/㎡) 258 258 230 230
Power AC100-240V, 50/60Hz AC100-240V, 50/60Hz AC100-240V, 50/60Hz AC100-240V, 50/60Hz
Operation Conditions Operating Temp/Humidity -20 - 50℃ / 10% - 80% -20 - 50℃ / 10% - 80% -20 - 50℃ / 10% - 80% -20 - 50℃ / 10% - 80%
Storage Temp/Humidity -30 - 60℃ / 10% - 90% -30 - 60℃ / 10% - 90% -30 - 60℃ / 10% - 90% -30 - 60℃ / 10% - 90%
Cooling Natural Cooling Natural Cooling Natural Cooling Natural Cooling
IP Rating IP 65 IP 65 IP 65 IP 65
Certification Safety 62368-1, 60950-1 62368-1, 60950-1 62368-1, 60950-1 62368-1, 60950-1
EMC Class A Class A Class A Class A
Service Servicing Front and Rear Front and Rear Front and Rear Front and Rear
Curve Installation Curve Support (-:concave +: convex) (˚) -10° ~ +10° -10° ~ +10° -10° ~ +10° -10° ~ +10°
