HiPad II - COB
Intelligent Commercial UHD LED Display
Thin & Light
Support HDR Function
High Definition Color
Front Install/Service
Double Backup Design
16:9 Golden Ratio
Cold Screen Technology
High Reliability
Wide Viewing Angle 160°

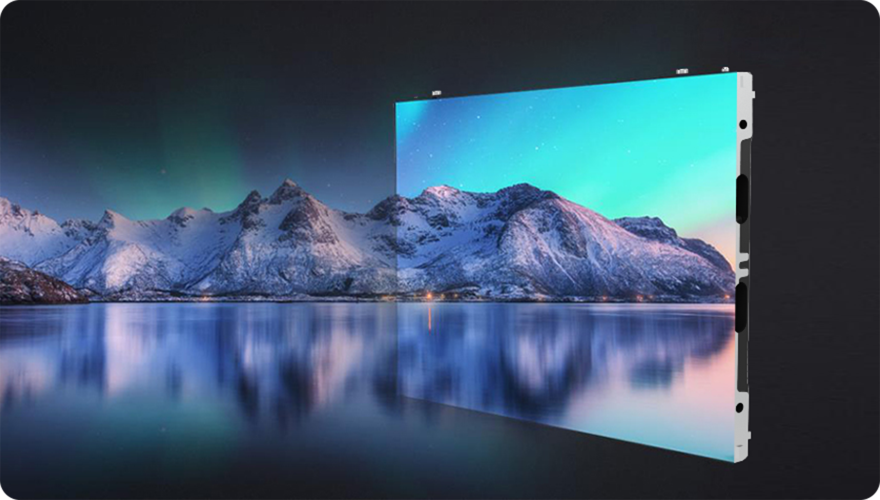

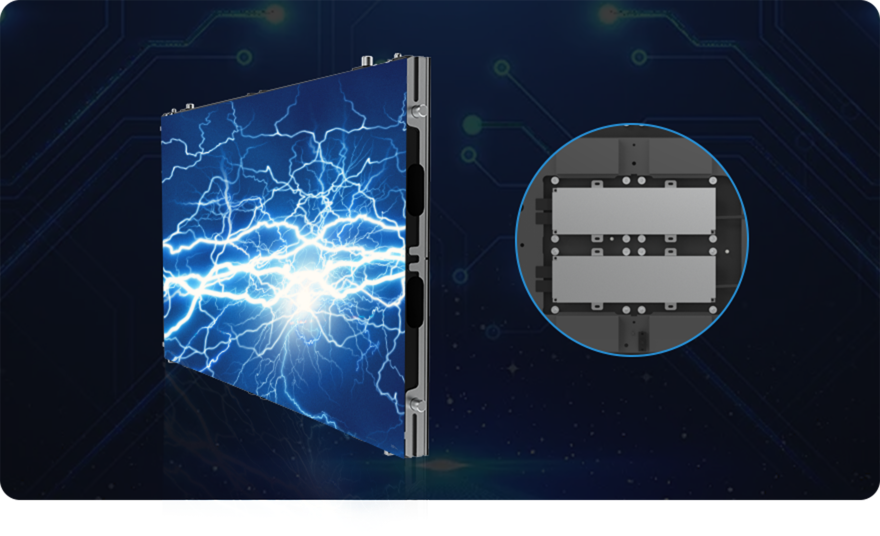

Thin & Light
35mm thick panel with a weight of 5.5kg, less expensive to transport and effortless to install.

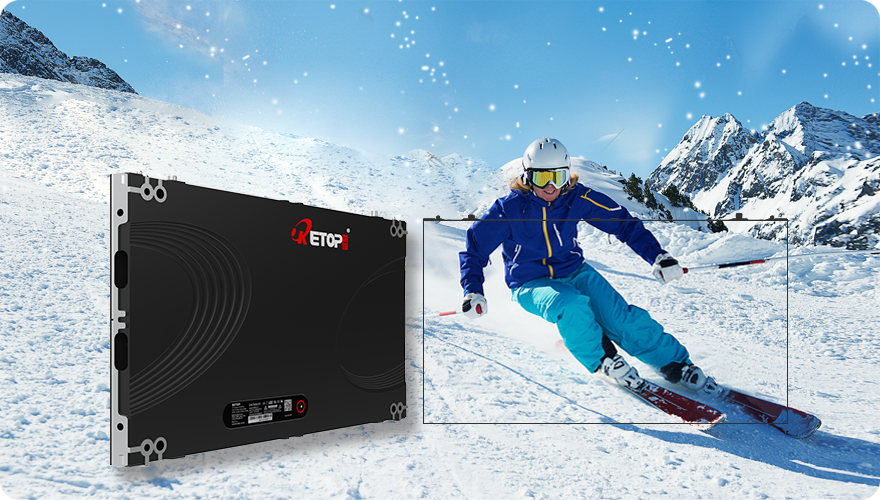

Support HDR Function
Support HDR10 and HDR10+ video playback, displaying more detailed picture dynamics, making the display screen lifelike.

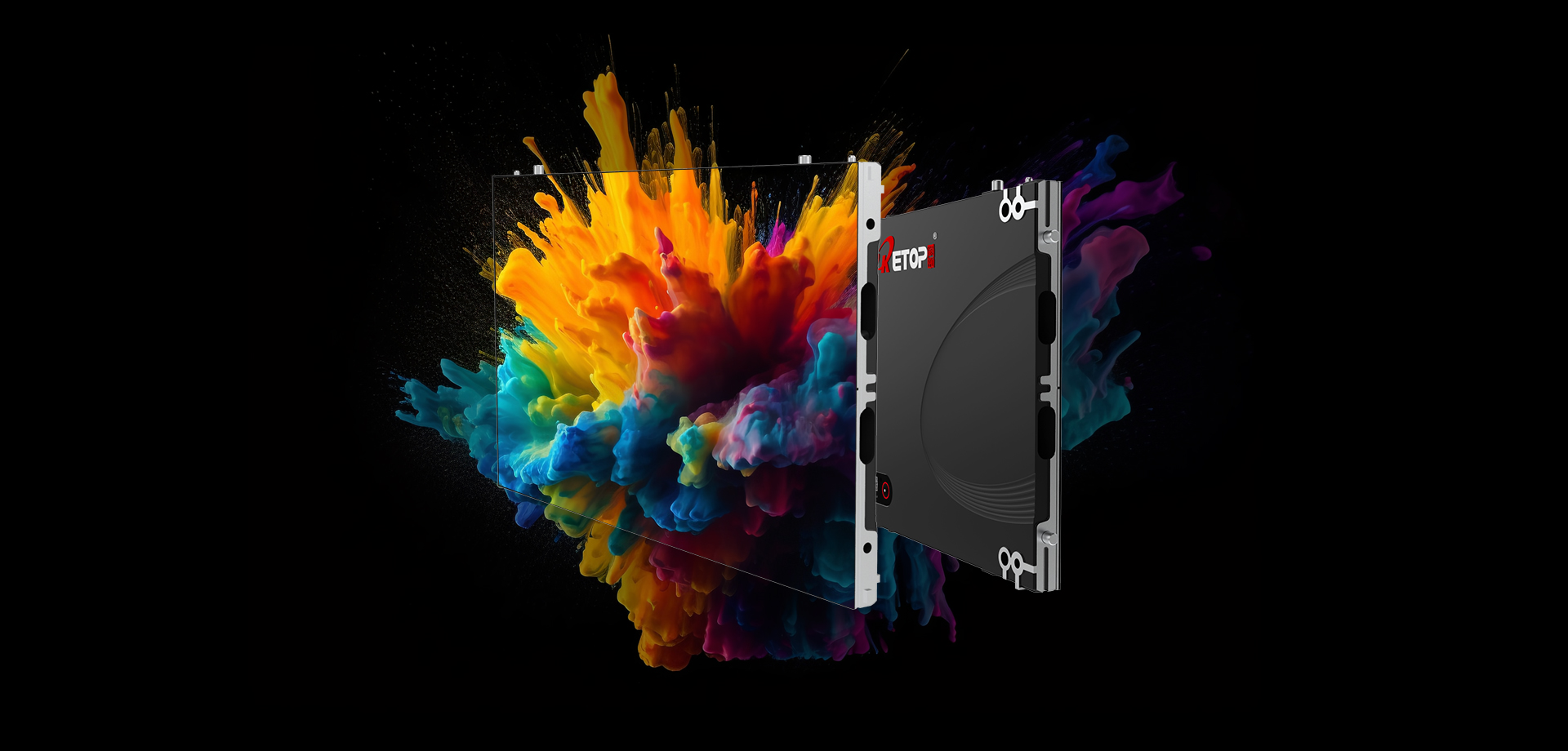

High Definition Color
Ultimate experience with high contrast & resolution.
Front Install / Service
All modules, power supplies, internal electronics and cables are replaceable from the front.
Double Backup Design
Dual backup of signal and power ensures stable operation of the display screen without downtime.
16:9 Golden Ratio
16:9 golden ratio, special R element appearance.
Cold Screen Technology
The special power supply method makes the screen temperature of the HiPad II-COB series lower than conventional products.

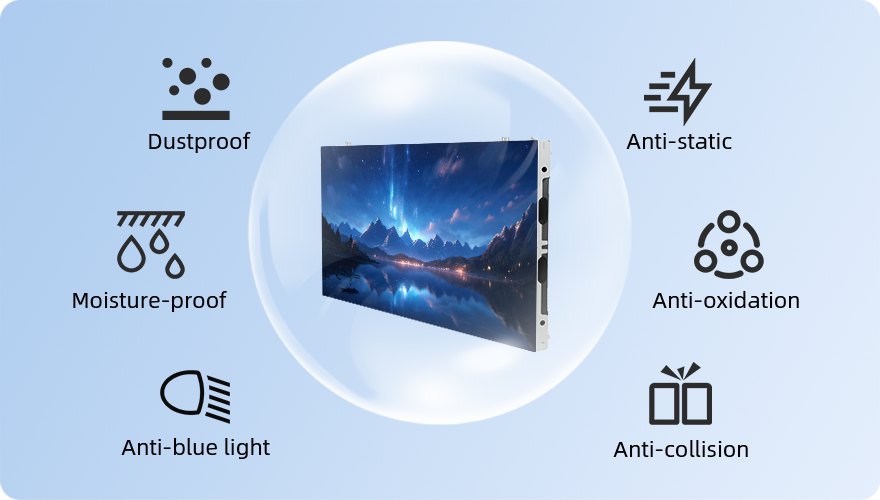

High Reliability
The HiPad II-COB series has the characteristics of ultra-high protection performance, stability and reliability, and strong environmental adaptability.

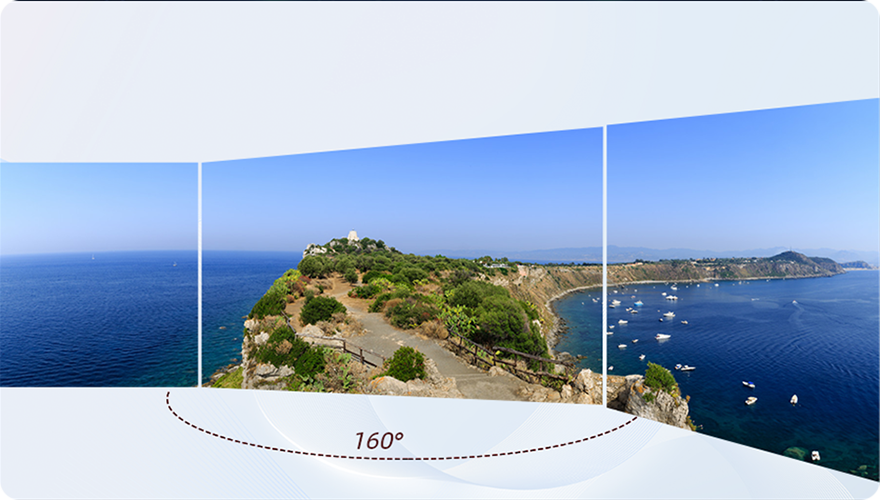

Wide Viewing Angle 160°
HiPad II-COB series provide wider viewing angles and pixel-perfect imagery.
Applications

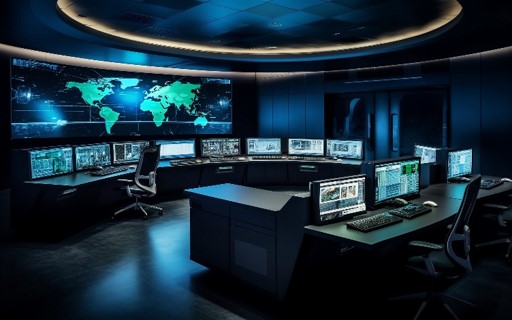

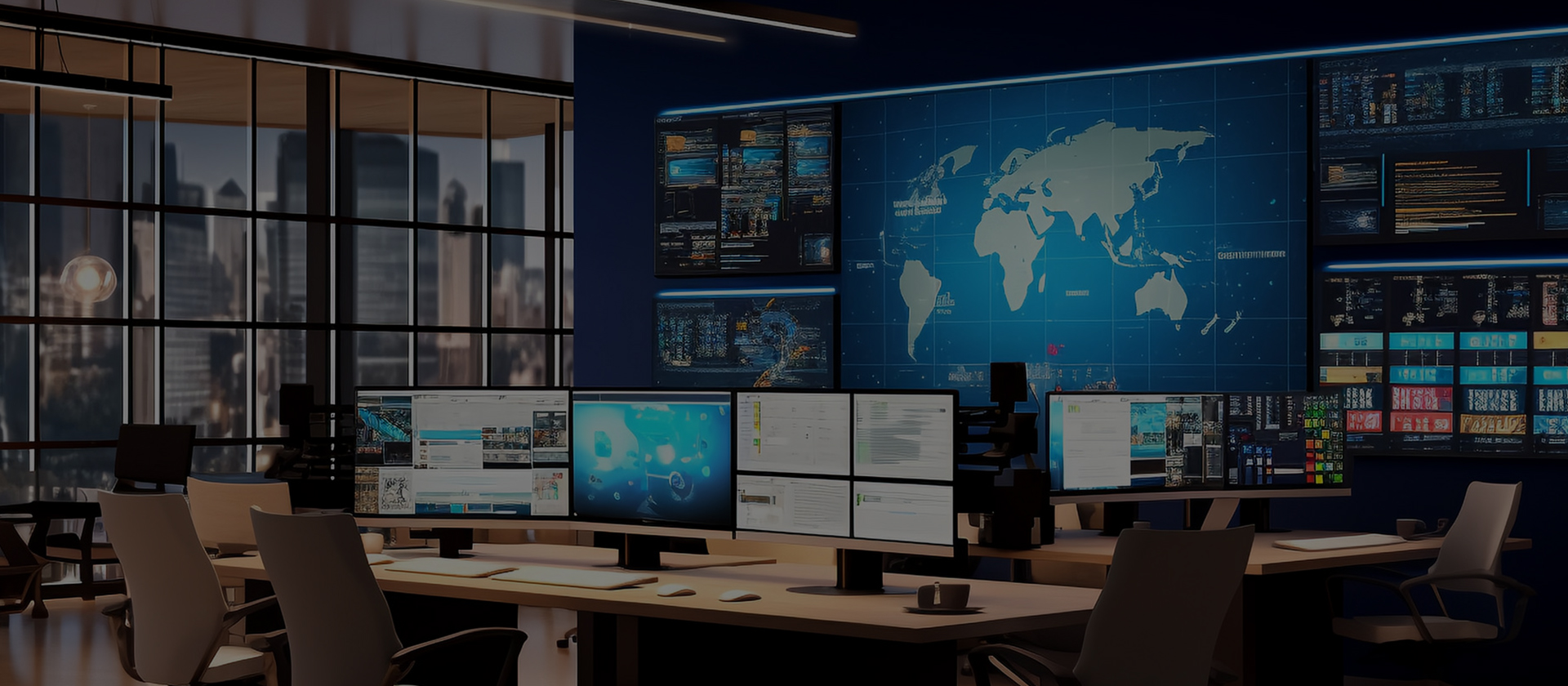

Command Centre

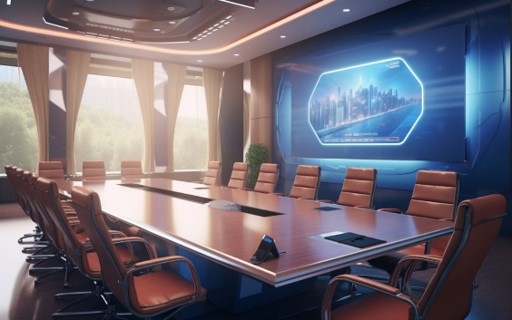

Conference Room

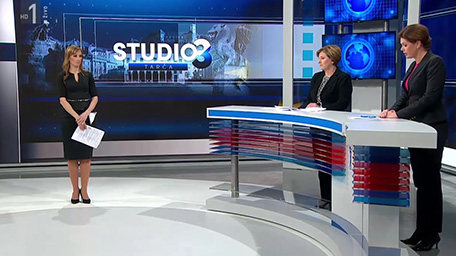

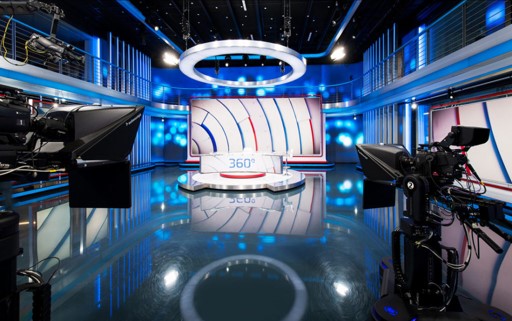

Broadcast

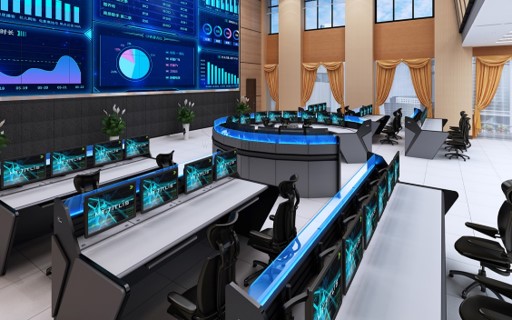

Dispatch Center

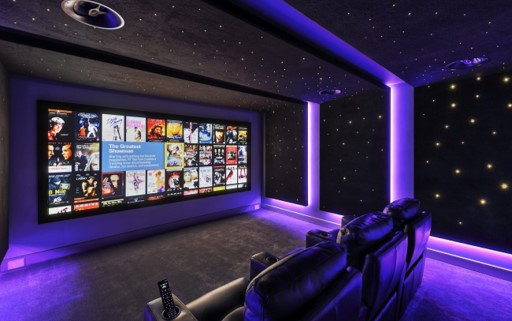

Home Cinema
Virtual Reality
Specifications
Model Name HIPADⅡ-COB0.7 HIPADⅡ-COB0.9 HIPADⅡ-COB1.2 HIPADⅡ-COB1.5
Basic
Parameter
Pixel Pitch 0.78125mm 0.9375mm 1.25mm 1.5625mm
Pixel Configuration 1R1G1B 1R1G1B 1R1G1B 1R1G1B
Pixel Density (㎡) 1,638,400 pixels/m² 1,108,033pixels/m² 623,334 pixels/m² 398,892 pixels/m²
LED Package type Chip on Board Chip on Board Chip on Board Chip on Board
LED Lifetime Hr
(24Hr, Luminance 50% down)
100,000 Hrs 100,000 Hrs 100,000 Hrs 100,000 Hrs
Physical
Parameter
Physical Resolution of Module (W × H) 192 × 144 160 × 180 120 × 135 96 × 108
Physical Resolution of Cabinet (W × H) 768 x 432 640 x 360 480 x 270 384 x 216
LED Module Dimensions (mm) 150× 112.5 150× 168.75 150× 168.75 150× 168.75
No. of Modules Per Cabinet (W × H) 4 x 3 4 x 2 4 x 2 4 x 2
Cabinet Dimensions (W × H × D) (mm) 600× 337.5 × 35 600× 337.5 × 35 600× 337.5 × 35 600× 337.5 × 35
Weight Per Cabinet (kg/Cabinet) 6.5±5% 6.5±5% 6.5±5% 6.5±5%
Cabinet Material Aluminum Diecasting Aluminum Diecasting Aluminum Diecasting Aluminum Diecasting
Optical Parameter Brightness (cd/m²) ≤600 ≤600 ≤600 ≤600
Contrast Ratio 15,000 : 1 15,000 : 1 1,5000 : 1 1,5000 : 1
Front Mask for C/R COB COB COB COB
Viewing Angle(H/V) 160°/160° 160°/160° 160°/160° 160°/160°
Refresh Rate (Hz) 3,840 Hz 3,840 Hz 3,840 Hz 3,840 Hz
Bit-depth(bit) 14bit 14 bit 14 bit 14 bit
Scan method 1/64 1/54 1/60 1/48
Colours 4 trillion 4 trillion 4 trillion 4 trillion
Color Temperature - Default 6500K 6500K 6500K 6500K
Electrical Parameter Max Power Consumption (w/㎡) 470 350 350 350
Typical Power Consumption (w/㎡) 145 100 100 100
Power AC100-240V, 50/60Hz AC100-240V, 50/60Hz AC100-240V, 50/60Hz AC100-240V, 50/60Hz
Operation Conditions Operating Temp/Humidity -10 - 40℃ / 10% - 80% -10 - 40℃ / 10% - 80% -10 - 40℃ / 10% - 80% -10 - 40℃ / 10% - 80%
Storage Temp/Humidity -20 - 60℃ / 10% - 90% -20 - 60℃ / 10% - 90% -20 - 60℃ / 10% - 90% -20 - 60℃ / 10% - 90%
Cooling Natural Cooling Natural Cooling Natural Cooling Natural Cooling
IP Rating Front IP65/Rear IP 30 Front IP65/Rear IP 30 Front IP65/Rear IP 30 Front IP65/Rear IP 30
Certification Safety 62368-1, 60950-1 62368-1, 60950-1 62368-1, 60950-1 62368-1, 60950-1
EMC Class A Class A Class A Class A
Service Servicing Front Front Front Front

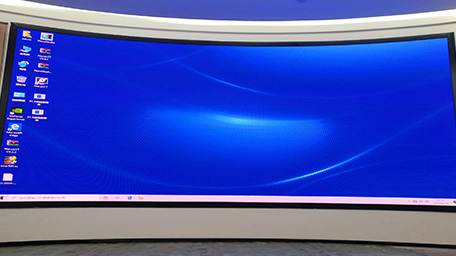

Curve Installation Curve Support (-:concave +: convex) (˚) / / / /
