SP
Sports Perimeter LED Display
Highly Integrated Design
Front / Rear Maintenance
Quick Installation
UEFA Standard
Soft Mask Design
Mobile Bracket Design

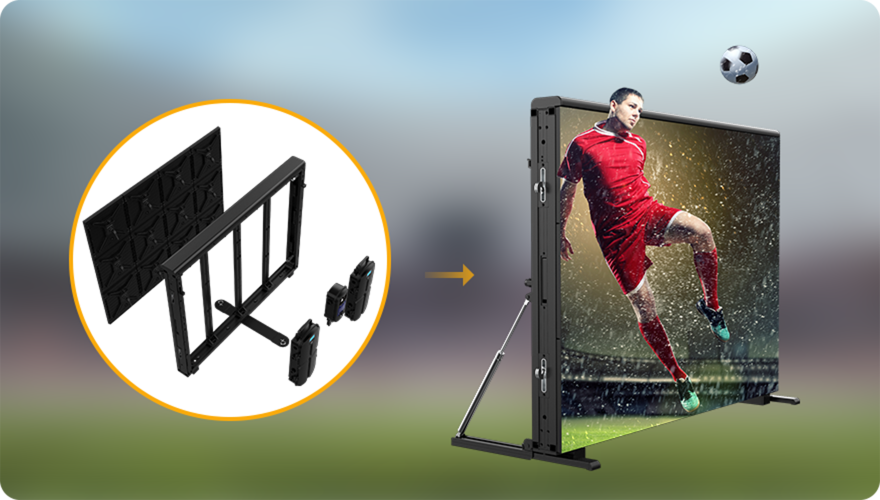

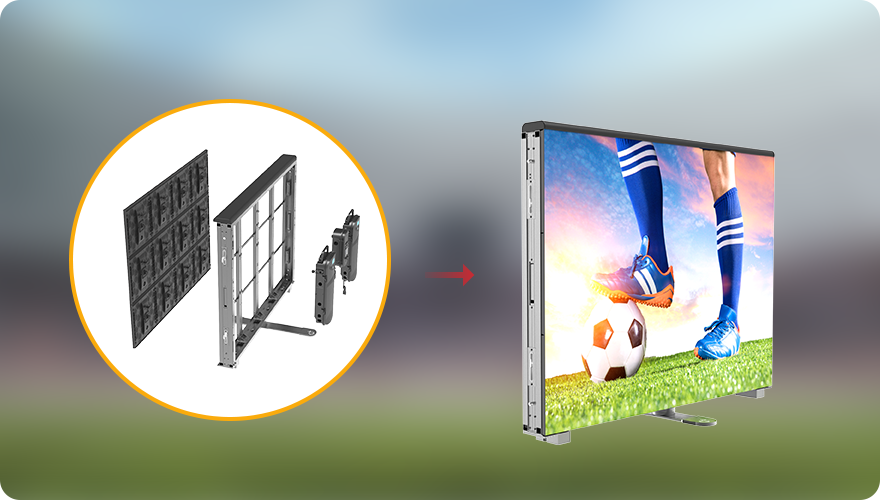

Highly Integrated Design
Highly integrated design, module and power cabinet support quick disassembly.

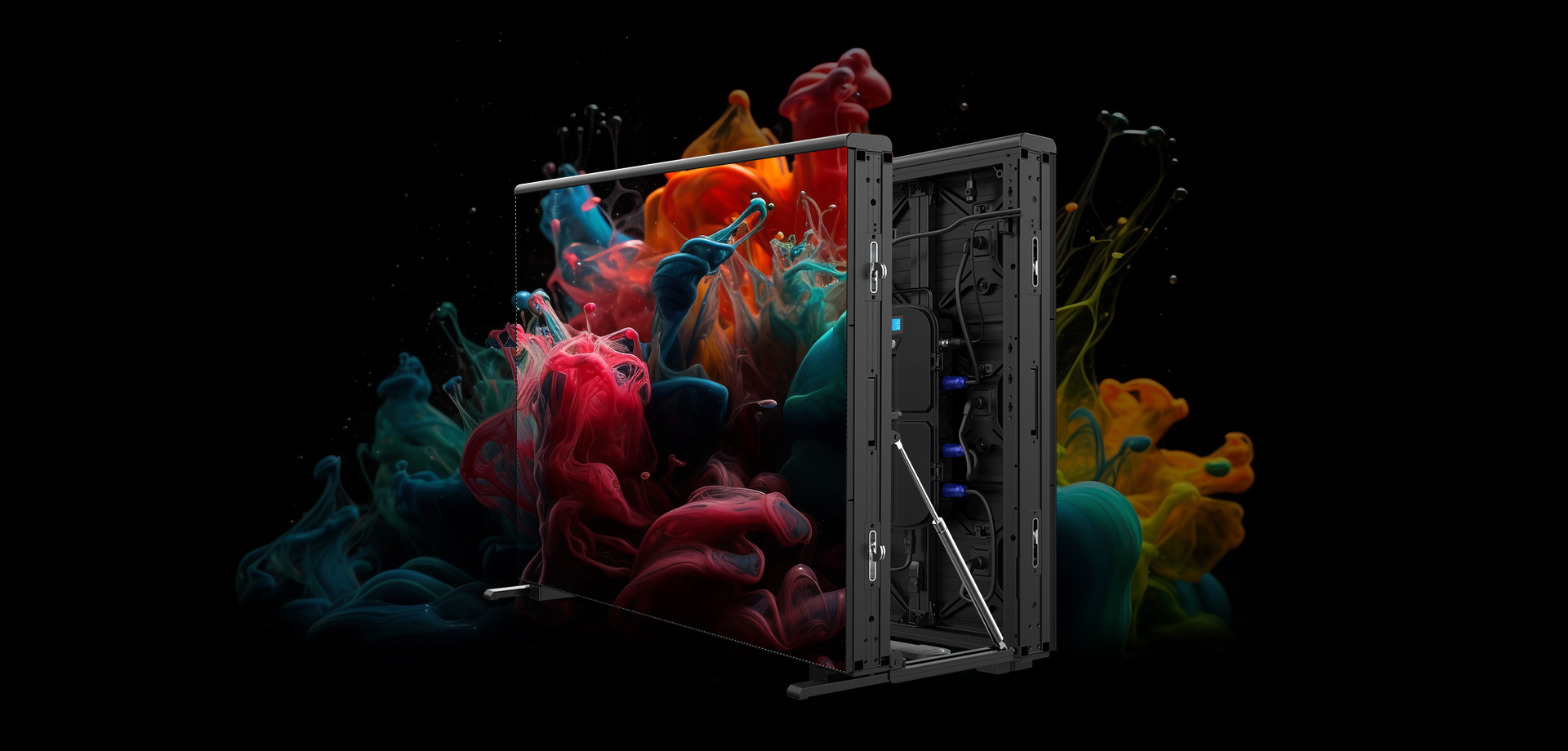

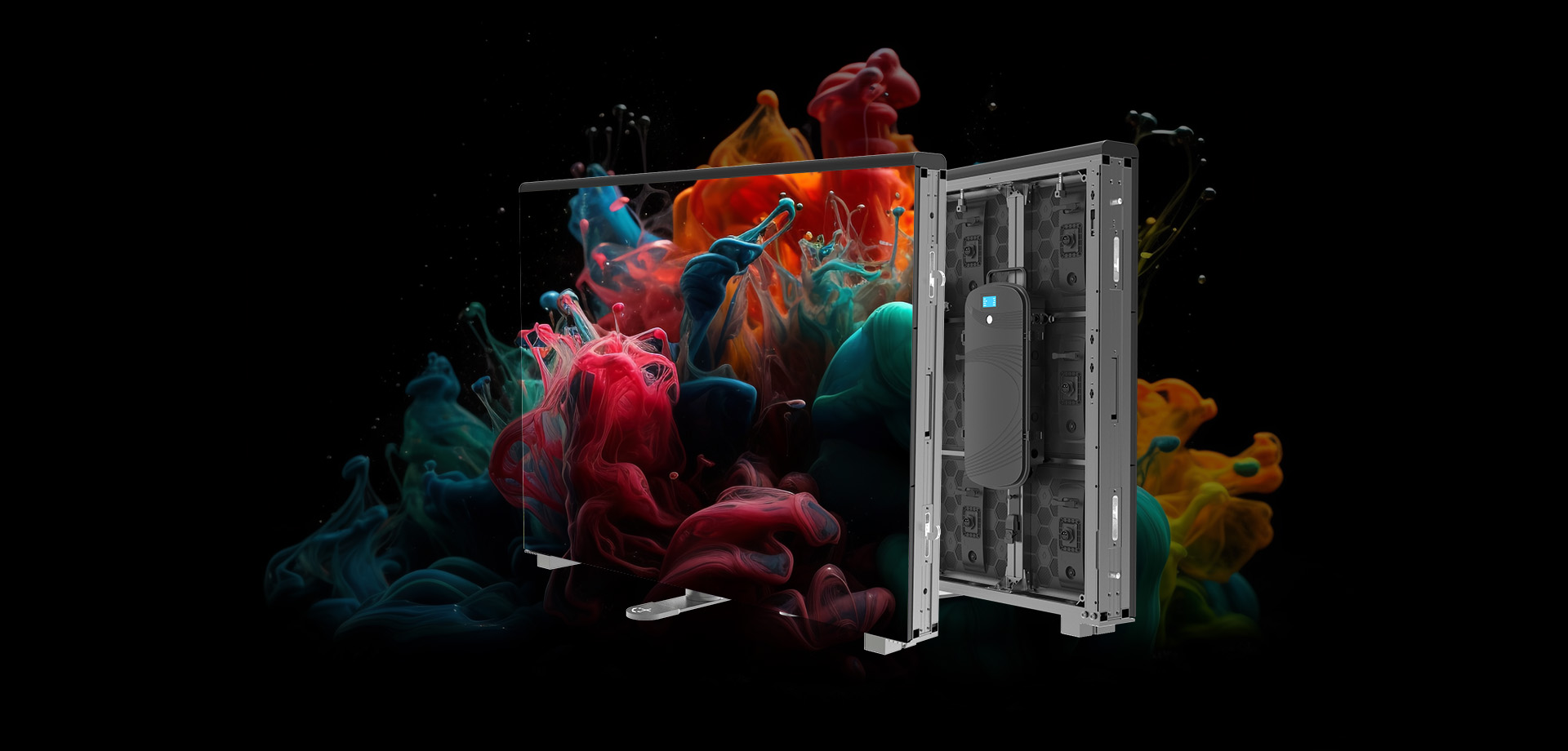

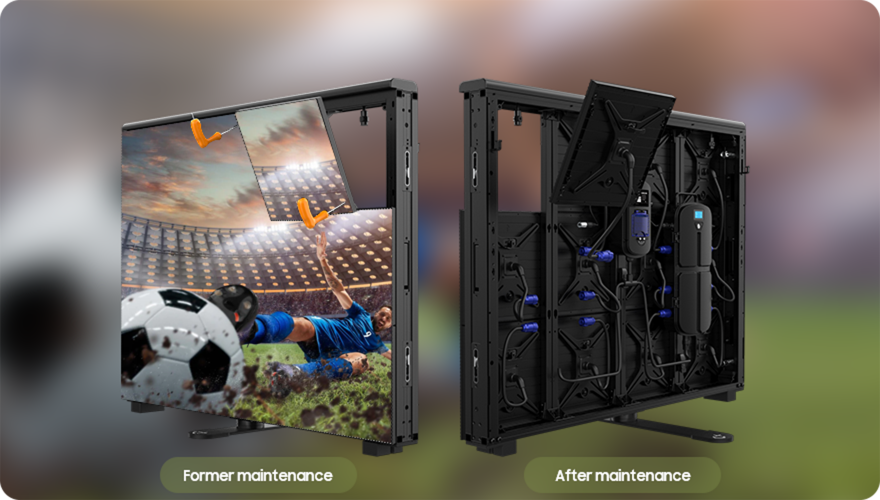

Front / Rear Maintenance
The module can be maintained back and front, flexible and convenient.

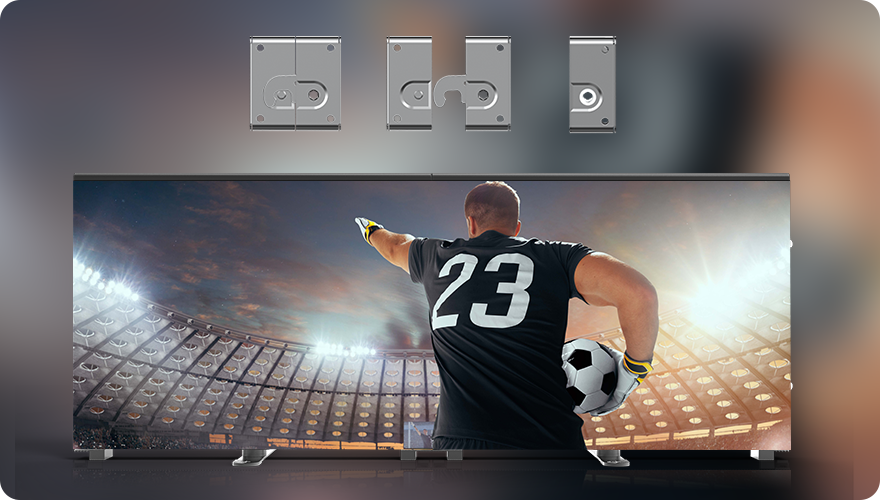

Quick Installation

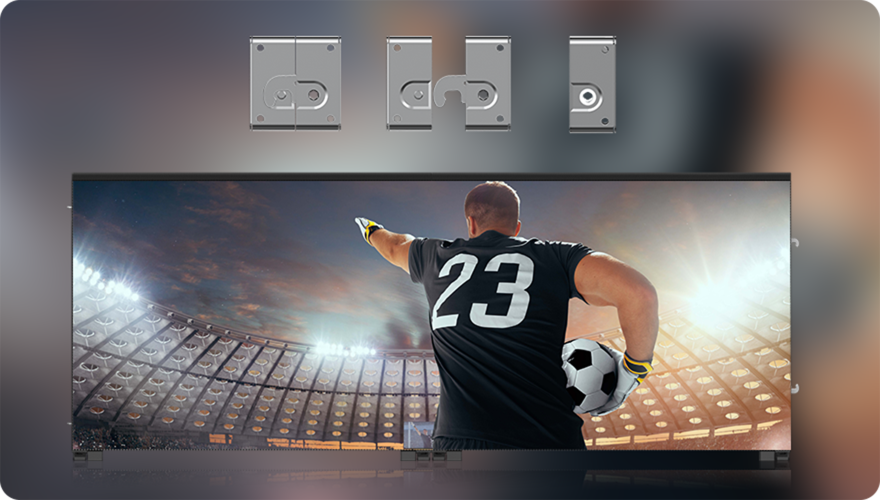

Design of quick lock with quick installation and single operation.
UEFA Standard

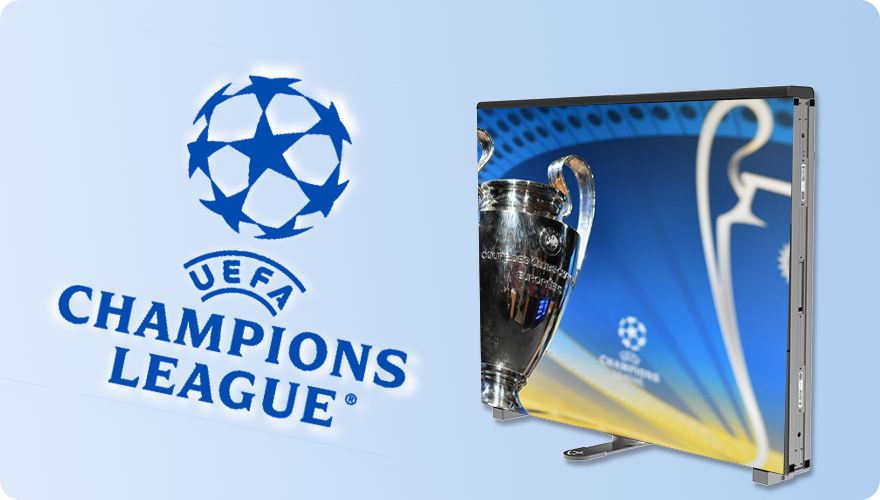

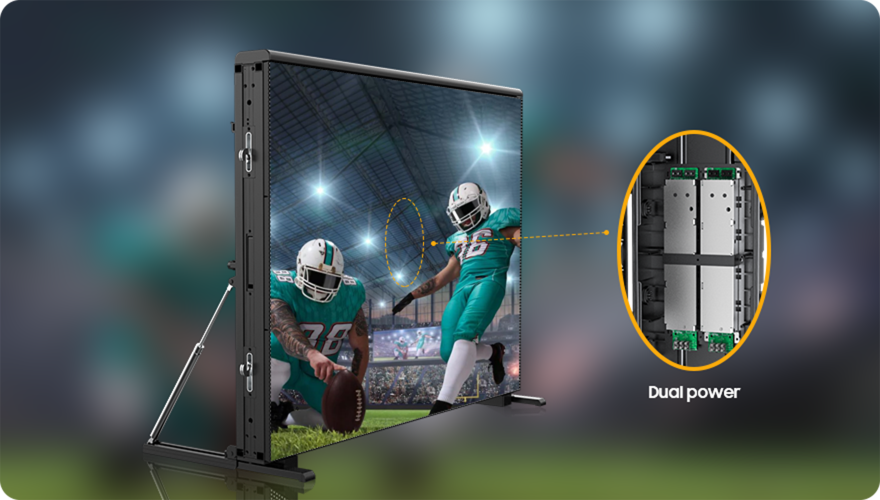

Meet the UEFA standard design, power supply current sharing backup, independent air-to-air switching power.

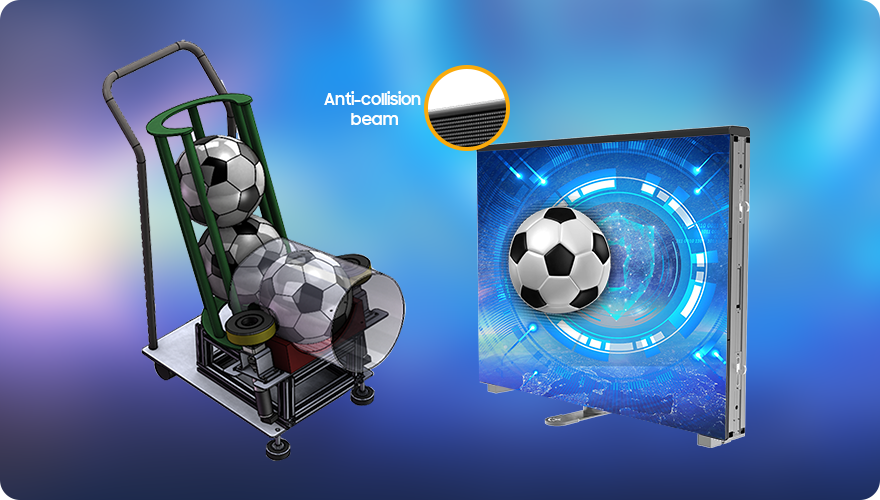

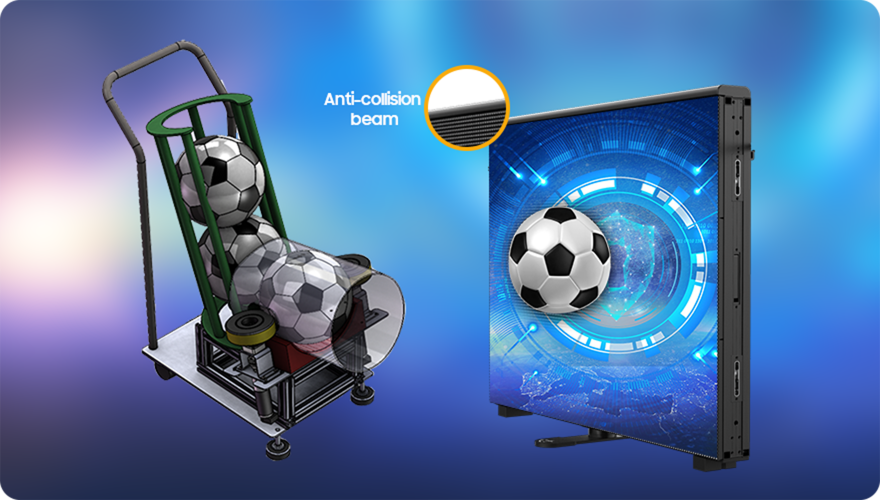

Soft Mask Design
The cabinet is designed with a soft mask and top anti-collision beam, effectively protecting the lives of athletes.

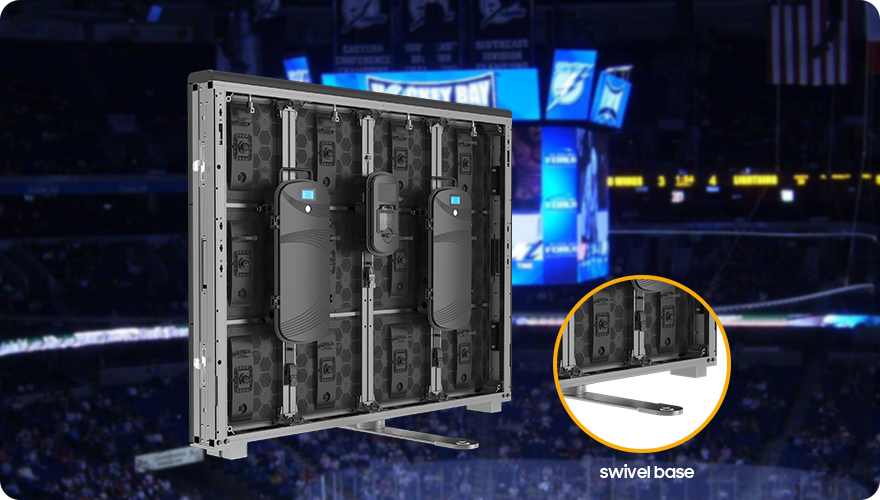

Mobile Bracket Design

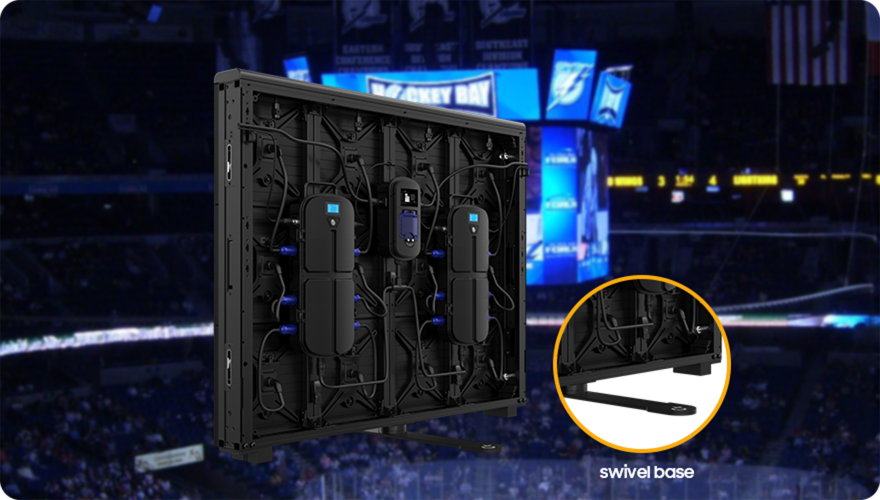

SP series bottom bracket with interchangeable swivel bases on both sides to accommodate different applications.
Applications

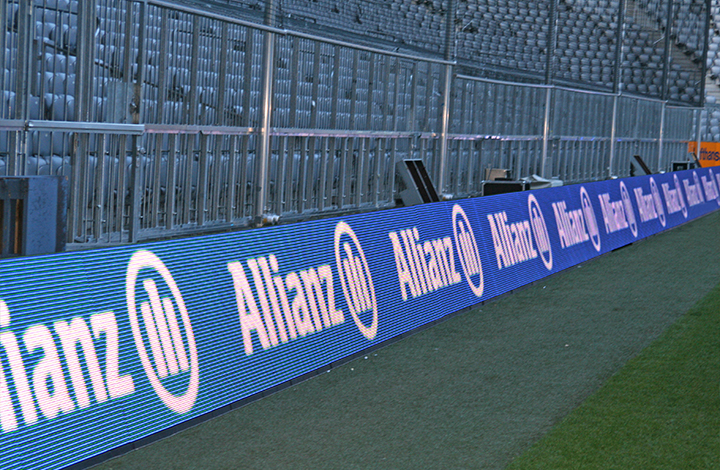

Football Field

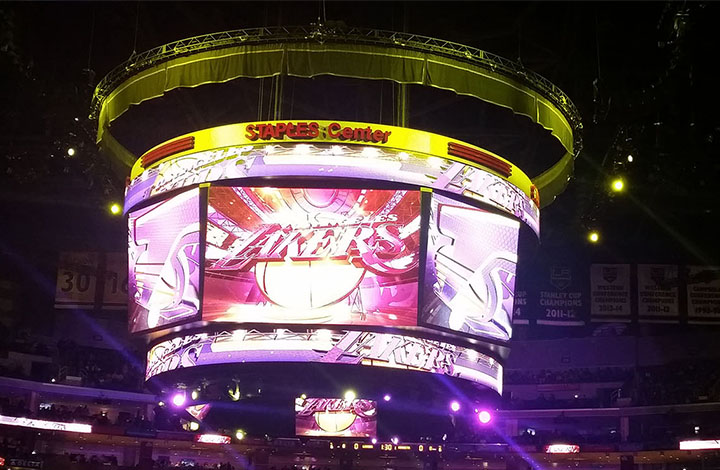

Basketball Court
Specifications
Model Name SP 10 SPII 10
Basic
Parameter
Pixel Pitch 10mm 10mm
Pixel Configuration SMD 3-in-1 SMD 3-in-1
Pixel Density (㎡) 10,000 pixels/m² 10,000 pixels/m²
LED Package type SMD3535 SMD2727
LED Lifetime Hr
(24Hr, Luminance 50% down)
100,000 Hrs 100,000 Hrs
Physical
Parameter
Physical Resolution of Module (W × H) 32 × 32 30 × 30
Physical Resolution of Cabinet (W × H) 128 x 96 120 x 90
LED Module Dimensions (mm) 320 × 320 300 × 300
No. of Modules Per Cabinet (W × H) 4 x 3 4 x 3
Cabinet Dimensions (W × H × D) (mm) 1280 x 960 x 150 1200 x 900 x 150
Weight Per Cabinet (kg/Cabinet) 50±5% 45±5%
Cabinet Material Aluminum Aluminum
Optical Parameter Brightness (cd/m²) >6,000 >6,000
Contrast Ratio 4,000 : 1 4,000 : 1
Front Mask for C/R Soft Mask Soft Mask
Viewing Angle(H/V) 140° / 120 ° 140° / 120 °
Refresh Rate (Hz) 3,840 Hz 3,840 Hz
Bit-depth(bit) 16 bit 16 bit
Scan method 1/2 1/2
Colours 281 trillion 281 trillion
Color Temperature - Default 6500K±500K 6500K±500K
Electrical Parameter Max Power Consumption (w/㎡) 780 780
Typical Power Consumption (w/㎡) 250 250
Power AC100-240V, 50/60Hz AC100-240V, 50/60Hz
Operation Conditions Operating Temp/Humidity -20 - 50℃ / 10% - 80% -20 - 50℃ / 10% - 80%
Storage Temp/Humidity -30 - 60℃ / 10% - 90% -30 - 60℃ / 10% - 90%
Cooling Natural Cooling Natural Cooling
IP Rating IP 65 IP 65
Certification Safety 62368-1, 60950-1 62368-1, 60950-1
EMC Class A Class A
Service Servicing Front and Rear Front and Rear
Curve Installation Curve Support (-:concave +: convex) (˚) / /
