HiPad II - COB

Intelligent Commercial UHD LED Display

Home Commercial HiPad II - COB

Thin & Light

Support HDR Function

High Definition Color

Front Install/Service

Double Backup Design

16:9 Golden Ratio

Cold Screen Technology

High Reliability

Wide Viewing Angle 160°

Thin & Light

With a 35mm thick panel and weighing just 5.5kg, our flexible LED video wall is less expensive to transport and effortless to install, suitable as an LED wall for stage and other scenes that need mobile LED screens.

Support HDR Function

Supporting HDR10 and HDR10+ video playback, this curved LED screen panel displays more detailed picture dynamics, making the display screen lifelike, ideal for filming LED screens.

High Definition Color

Retop full color LED display supplier enable our customers experience the ultimate in high contrast and resolution. Make this flexible led video wall perfect for use as LED screens for events and LED wall for stage.

Front Install / Service

All modules, power supplies, internal electronics, and cables are replaceable from the front, ensuring easy maintenance for a broadcast LED and an LED studio screen.

Double Backup Design

The dual backup of signal and power ensures stable operation without downtime, making it reliable for a LED screen for conference rooms and other high-demand settings.

16:9 Golden Ratio

Featuring a 16:9 golden ratio and special R element appearance, this LED screen is perfect for various applications, from LED walls for stage to led screen for conference room.

Cold Screen Technology

The special power supply method keeps the screen temperature of the HiPad II-COB series lower than conventional products, ensuring high reliability.

High Reliability

The HiPad II-COB series offers ultra-high protection performance, stability, reliability, and strong environmental adaptability, ideal for any flexible LED video wall application.

Wide Viewing Angle 160°

The HiPad II-COB series provides wider viewing angles and pixel-perfect imagery, making this direct view LED video wall perfect for all your LED display needs.

Applications

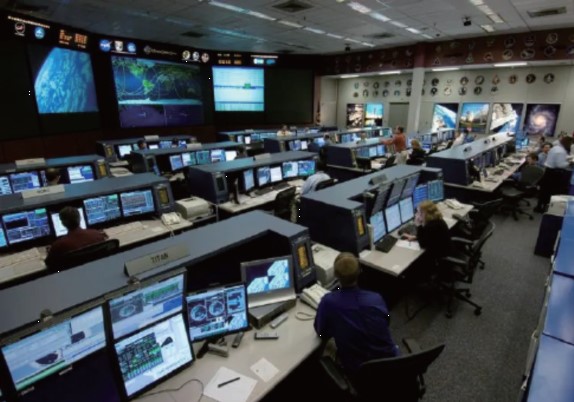

Command Centre

Conference Room

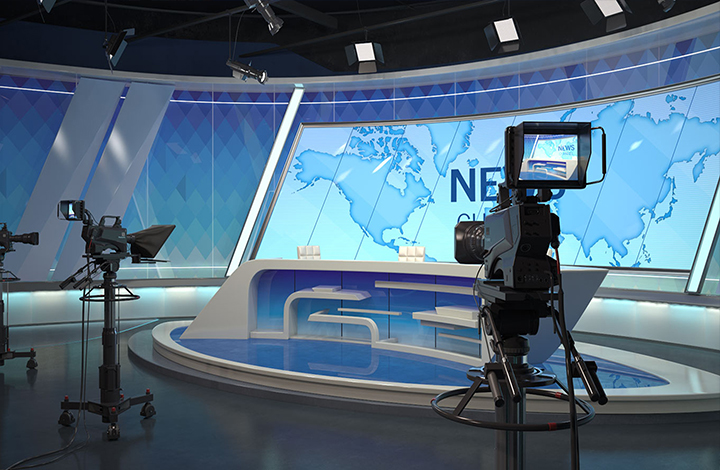

Broadcast

Dispatch Center

Home Cinema

Virtual Reality

Specifications

Model Name		HIPADⅡ-COB0.7	HIPADⅡ-COB0.9	HIPADⅡ-COB1.2	HIPADⅡ-COB1.5
Basic Parameter	Pixel Pitch	0.78125mm	0.9375mm	1.25mm	1.5625mm
	Pixel Configuration	1R1G1B	1R1G1B	1R1G1B	1R1G1B
	Pixel Density (㎡)	1,638,400 pixels/m²	1,108,033pixels/m²	623,334 pixels/m²	398,892 pixels/m²
	LED Package type	Chip on Board	Chip on Board	Chip on Board	Chip on Board
	LED Lifetime Hr (24Hr, Luminance 50% down)	100,000 Hrs	100,000 Hrs	100,000 Hrs	100,000 Hrs
Physical Parameter	Physical Resolution of Module (W × H)	192 × 144	160 × 180	120 × 135	96 × 108
	Physical Resolution of Cabinet (W × H)	768 x 432	640 x 360	480 x 270	384 x 216
	LED Module Dimensions (mm)	150× 112.5	150× 168.75	150× 168.75	150× 168.75
	No. of Modules Per Cabinet (W × H)	4 x 3	4 x 2	4 x 2	4 x 2
	Cabinet Dimensions (W × H × D) (mm)	600× 337.5 × 35	600× 337.5 × 35	600× 337.5 × 35	600× 337.5 × 35
	Weight Per Cabinet (kg/Cabinet)	6.5±5%	6.5±5%	6.5±5%	6.5±5%
	Cabinet Material	Aluminum Diecasting	Aluminum Diecasting	Aluminum Diecasting	Aluminum Diecasting
Optical Parameter	Brightness (cd/m²)	≤600	≤600	≤600	≤600
	Contrast Ratio	15,000 : 1	15,000 : 1	1,5000 : 1	1,5000 : 1
	Front Mask for C/R	COB	COB	COB	COB
	Viewing Angle（H/V）	160°/160°	160°/160°	160°/160°	160°/160°
	Refresh Rate (Hz)	3,840 Hz	3,840 Hz	3,840 Hz	3,840 Hz
	Bit-depth(bit)	14bit	14 bit	14 bit	14 bit
	Scan method	1/64	1/54	1/60	1/48
	Colours	4 trillion	4 trillion	4 trillion	4 trillion
	Color Temperature - Default	6500K	6500K	6500K	6500K
Electrical Parameter	Max Power Consumption (w/㎡)	470	350	350	350
	Typical Power Consumption (w/㎡)	145	100	100	100
	Power	AC100-240V, 50/60Hz	AC100-240V, 50/60Hz	AC100-240V, 50/60Hz	AC100-240V, 50/60Hz
Operation Conditions	Operating Temp/Humidity	-10 - 40℃ / 10% - 80%	-10 - 40℃ / 10% - 80%	-10 - 40℃ / 10% - 80%	-10 - 40℃ / 10% - 80%
	Storage Temp/Humidity	-20 - 60℃ / 10% - 90%	-20 - 60℃ / 10% - 90%	-20 - 60℃ / 10% - 90%	-20 - 60℃ / 10% - 90%
	Cooling	Natural Cooling	Natural Cooling	Natural Cooling	Natural Cooling
	IP Rating	Front IP65/Rear IP 30	Front IP65/Rear IP 30	Front IP65/Rear IP 30	Front IP65/Rear IP 30
Certification	Safety	62368-1, 60950-1	62368-1, 60950-1	62368-1, 60950-1	62368-1, 60950-1
Certification	EMC	Class A	Class A	Class A	Class A
Service	Servicing	Front	Front	Front	Front
Curve Installation	Curve Support (-:concave +: convex) (˚)	/	/	/	/

SELL ALL SPECS

Downloads

Download HiPad II - COB brochure

1.5 mb pdf
